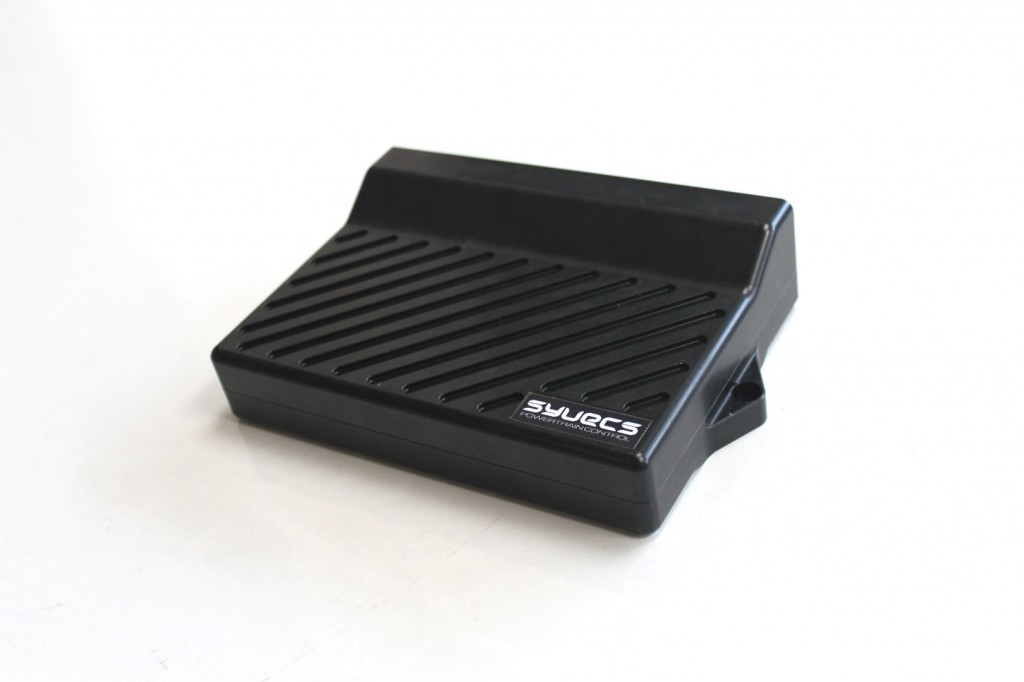

Audi TTRS RS3 mk2 Syvecs Plug and Play ECU

£4,920.00

SKU: SKU-20218 Categories: ,

Description

Audi TTRS RS3 mk2 Syvecs Plug and Play ECU

Based on the Syvecs S7+ Plus ECU, the Plug N Play kit inherits all of its features but we are particularly proud of the following:
Live Tuning of every aspect of the engine’s calibration, including signals sent to the DSG
Full Direct Injection and Pump Control
8 Injector Support with 4 Port Injectors
Ability to select desired engine map, boost level, traction and launch control levels through steering wheel buttons
Fully adjustable Launch control with Anti-lag strategies and Ramp in Maps
Full Variable Valve Timing control
Flex Fuel control
Cruise Control
Fully functional with every other Ecu on the Car
Closed loop Dual Lambda Control
Fully adjustable closed loop boost control with launch level adjustments and trims for turbo speed, air charge, engine coolant temp, exhaust gas temperatures etc
Monitor and trimming of exhaust gas temperatures
Flat Shift
Built in data logging using a market leading analysis software of up to 8 hours, with data rates at up to 1000hz
Rolling Antilag / Pit lane limiter strategies, great for building boost on a roll
Antitheft and valet modes
Super fast connection via RJ45 Ethernet port for live tuning anywhere in the world or even remotely if on track if connected to a wireless unit.
Adjustable traction control strategies based on lateral g and individual wheel speed monitoring.
4 programmable target slip maps. An immediate torque reduction can be applied by the ECU via ignition retard or a fuel cut.
Configurable Engine Safety Trips on all important parameters like oil temperature, oil pressure.
Fuel pump control of both main, and sub pumps, as well as Relative fuel pressure monitoring and limiting in the event of fuel pressure dropping on boost.
4 different Pedal to Throttle Angle maps with multipliers for different parameters e.g. speed. Again adjustable via steering wheel buttons
Configurable individual cylinder closed loop knock control, to suit any cylinder modification with adjustments to frequency, windows for listening and gains for each cylinder. Ability to trigger full cylinder shutdown in severe knock conditions.
Change torque reduction levels on shifts. Essential for very high power applications where the maximum reduction available via the stock ECU is not enough to prevent damage to components
Ability to change Torque ramp in after launch
Change throttle blip requests to match your torque band. Especially useful on oversized turbo installations.
Run up to 7bar map sensors
Control high or low impendence injectors
Control up to 4 additional injectors for high power installations where staged injection may be required
Change injector dead times based on voltage levels for proper control
Change injector end angle to ensure injection point is properly calibrated
Ability to fit any type of external sensor to monitor and trigger safety trips from anything from crank case pressure to damper position
Ability to use any size DBW throttle body e.g. Chevrolet LS7
Wet and Dry – Wet and Dry nitrous control with ability to drive solenoids directly and control n20 heaters via pressure monitoring
Ability to control any external vehicle features based on sensor inputs e.g. Adjustable rear wing linked to G force or exhaust control valves
Connect any race series dash or even one of our partners’ Touchscreen CANBUS adjustment /display units
View any input live with built in scope up to 1000hz
And much, much more with the Audi TTRS – Syvecs PnP.

Please visit this link if you are interested in any further products from us:http://shop.tdi-plc.com/index.php?pge=c_upgrades

For further product info on Audi TTRS RS3 mk2 Syvecs Plug and Play ECU plase visit: http://www.syvecs.co.uk/products/engine-management-system/s6-i/
