Description

Evo 9 FIGHTEX DA-G Coilovers

Dual adjustment Gymkhana spec.

Designed for Gymkhana use only. 18 step damping force adjustment + full length adjustment. Designed for all the forms of Gymkhana found in Japan, the DA-G allows the car to be set up for the various conditions found at the track suck as weather and track surface. Drivers in the Japan championship use the adjustability to continually test and fine tune to find that winning advantage. The adjustability also allows you to continually get the best out of the latest tire compounds.

Dual Adjust (DA) offers the adjustable bottom bracket for quick and easy changes on the overall length of dampers without making adjustments on the spring pre-load. It helps to find the delicate balance between traction and grip. TODA Racing utilizes the latest design and manufacturing technologies to produce FIGHTEX Coilover systems. FIGHTEX Coilover systems should not be confused with cheaper height adjustable systems. The FIGHTEX system is a complete racing suspension and is specifically tuned for each vehicle application. All systems are produced from aluminium (not steel) to reduce un-sprung weight, aide in faster suspension cooling, and resistance to corrosion which is common with Coilover dampers manufactured from steel. FIGHTEX suspension systems are among the world’s highest quality and highest performing coilover systems. All development and manufacturing is done in house by TODA Racing.

CT9A LANCER

TypeDA

*Click the damper images below to see larger pictures.

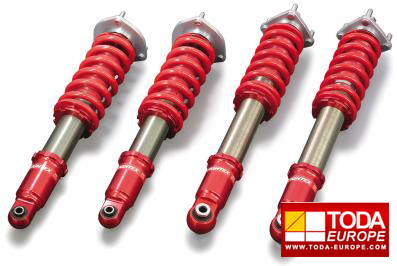

CT9A FIGHTEX Damper KIT
Type

Kit contents		Damper + Spring + Pillow ball upper mount
Model		CT9A (LANCER)
Part No.		51520-CT9-000	51530-CT9-000
Price (KIT)			£2495
Price (damper only)
Price (damper + spring)
Supplied spring rate [kgf/mm-mm]	Front	12K-200	14K-200
	Rear	10K-200	12K-200
Adjustable height range to standard height	Front	approx. -10mm ~ -50mm
	Rear	approx. -10mm ~ -60mm
Design		F: Up side down design / R: Standard design

Spring rate can be changed at the time of order (A price is the same).
Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

Damper KIT contents: Damper, main spring, helper spring (for certain types only), pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot (rear), car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.
