BMW E92 M3 Supercharger System

June 3, 2014 Mark

BMW E92 M3 Supercharger System

BMW E92 M3 Supercharger System

BMW E92 M3 Supercharger System

Torque Developments International is proud to offer this professionally developed and engineered BMW E92 M3 Supercharger System for the already very capable sports salloon!

Maintaining the original BMW quality, look and feel, smoothness and reliability were the key factors in the design of this supercharger system. Superior throttle response has been maintained and engine performance has been significantly enhanced by the addition of a Vortech Si trim centrifugal supercharger to give a massive performance boost which is available in 4 different stages all the way up to 650hp.

Based upon the Vortech V3 Si-trim Super Quiet unit, this unit is capable of supporting over 700hp. The centrifugal supercharger compressor maps ideally match the 8000 rpm revving S65 BMW Motorsport engine giving it a new meaning to high performance.

CNC Machined from 6061-T6 aircraft grade aluminium, the supercharger mounting bracket is a triangulated to the engine block in addition to a Chrome Moly brace and grade 10.8 high tensile hardware. The factory belt tensioner is upgraded and the supercharger is driven off an OEM quality multi-rib serpentine belt. The factory plastic intake manifold is replaced with a VF cast aluminium plenum designed to channel the air from the supercharger to the 8 independent M3 throttle bodies. The VF plenum is designed to be upgraded with a slide-in high strength bar and plate heat exchanger for the upper 2 power level kits. The heat exchanger cools the intake air charge with isolated cold water circulating through it from a custom moulded water reservoir, an OEM front mount radiator and water pump.

The high displacement bypass valve recirculates air charge off-throttle to minimise manifold pressure instantly. The bypass valve is mounted on a universal flange allowing you to opt for a blow-off valve should you prefer that sound. The injectors are upgraded with high capacity Bosch EV14 high impedance quick response fuel injectors and are calibrated by re-tuned software flashed into the ECU through the OBD2 port. Each power level is tuned with a specific custom calibrated software version.

M3 Tuning software is programmed into your ECU using VF’s “Hex-Flash” programming cable. You can program your ECU within minutes yourself through the OBD2 connector on your dashboard. This tool also allows you to read and clear ECU codes.

The VF-Engineering M3 supercharger for the BMW E90/92/93 S65 engine is a fully upgradeable water cooled supercharger system. Designed to provide the most consistent charge temperatures under aggressive driving, the VF water intercooler system has a greater propensity to dissipate heat energy out of the air charge than an air intercooler.

VF use state of the art production manufacturing processes to create the highest quality supercharger kit on the market. A supercharger system designed with 3 stages of power; 540hp/370 lbs-ft, 595hp/374 ft-lbs,  625hp/400 ft-lbs and 650hp/420 ft-lbs, each stage upgradable to the next, this piece of kit is for quality discerning enthusiasts only.

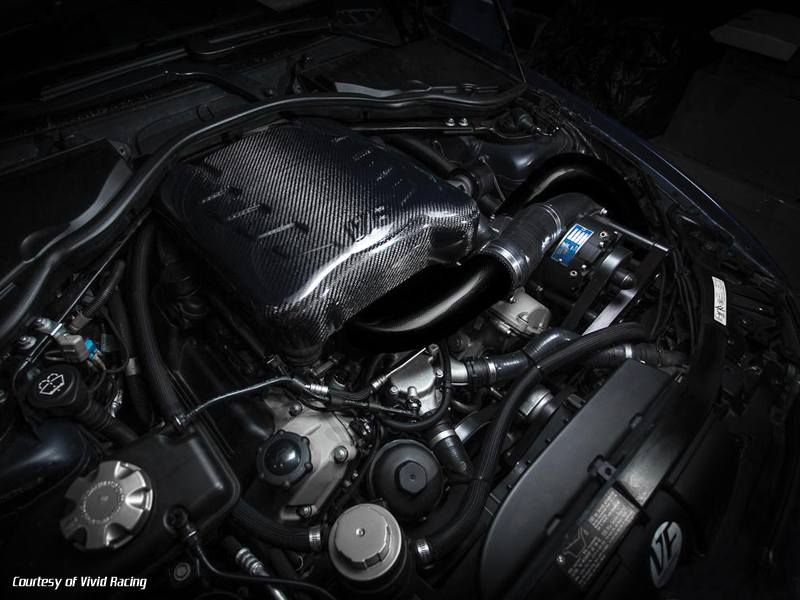

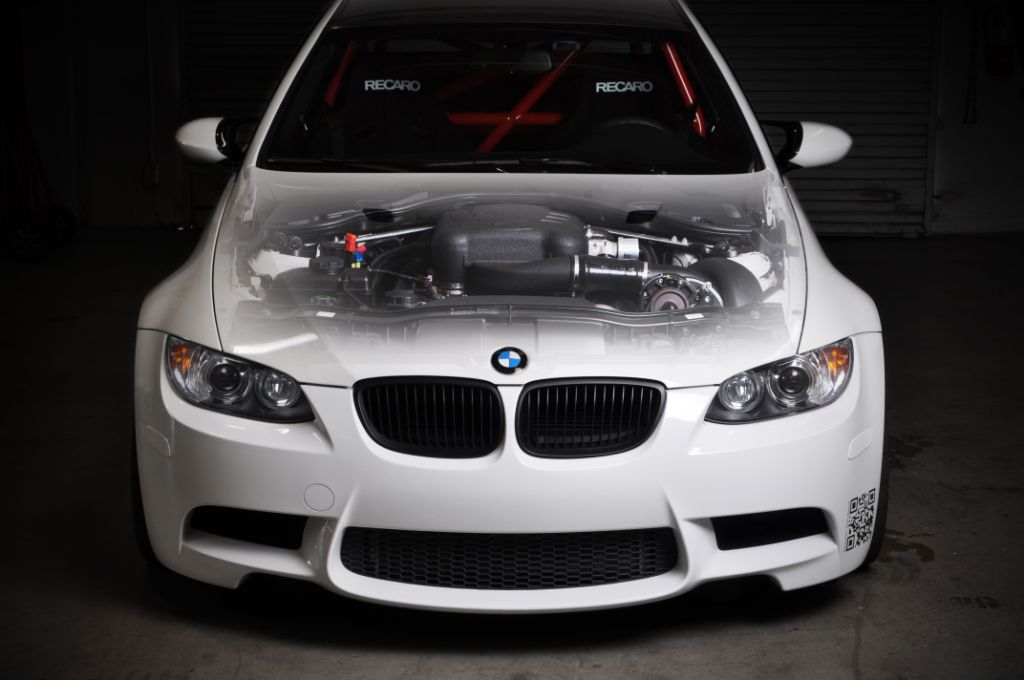

e92 m3 supercharger

e92 m3 supercharger

e92 m3 supercharger kit

e92 m3 supercharger kit



Optional software features include:

  • RPM limiter. On request we can provide a higher rev limiter software file.
  • Cold start. Cold start loud start can be switched off upon request.
  • Performance Exhaust. High performance exhaust compatible tune option upon request.
  • Independence. You may re-install your stock program at any time at your convenience. You may also program upgraded custom race gas files (available optionally from VF).
  • Valet mode/Immobilizer. If you are going to leave the car unused for a long period, you may wish to program our optional Valet Mode file or Anti-theft file.

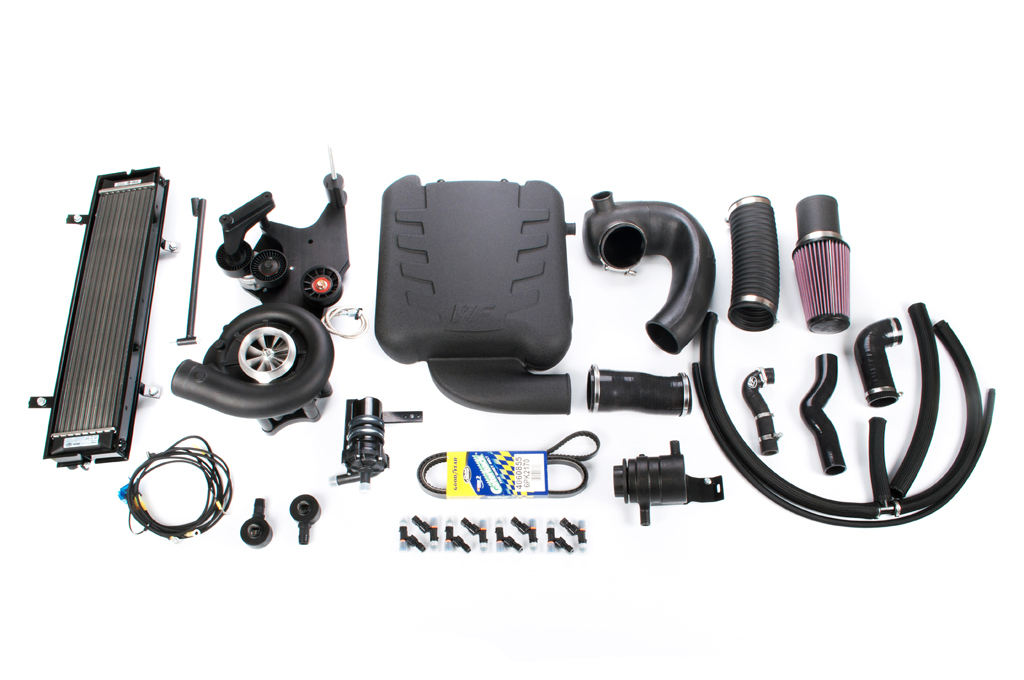

Available to order from VF-Engineering directly or a distributor.



  • Vortech V3 Si-Trim supercharger
  • VF Hex Flash update to latest BMW software version
  • Cast intake manifold
  • Air water charge cooler system (optional)
  • Polypropylene water reservoir
  • OEM high density water radiator
  • Bosch water pump
  • Bosch EV14 fuel injectors
  • Set of new OEM spark plugs
  • Greddy Type-R bypass valve
  • Hard anodized 6061-T6 aluminum bracket
  • Chrome-moly support bracket
  • OEM serpentine belt and tensioner
  • Cast aluminum intake
  • K&N induction filter with air box
  • Hex Flash ECU tuning programming cable

The BMW E92 M3 Supercharger system can be reviewed and purchased here:
