Description

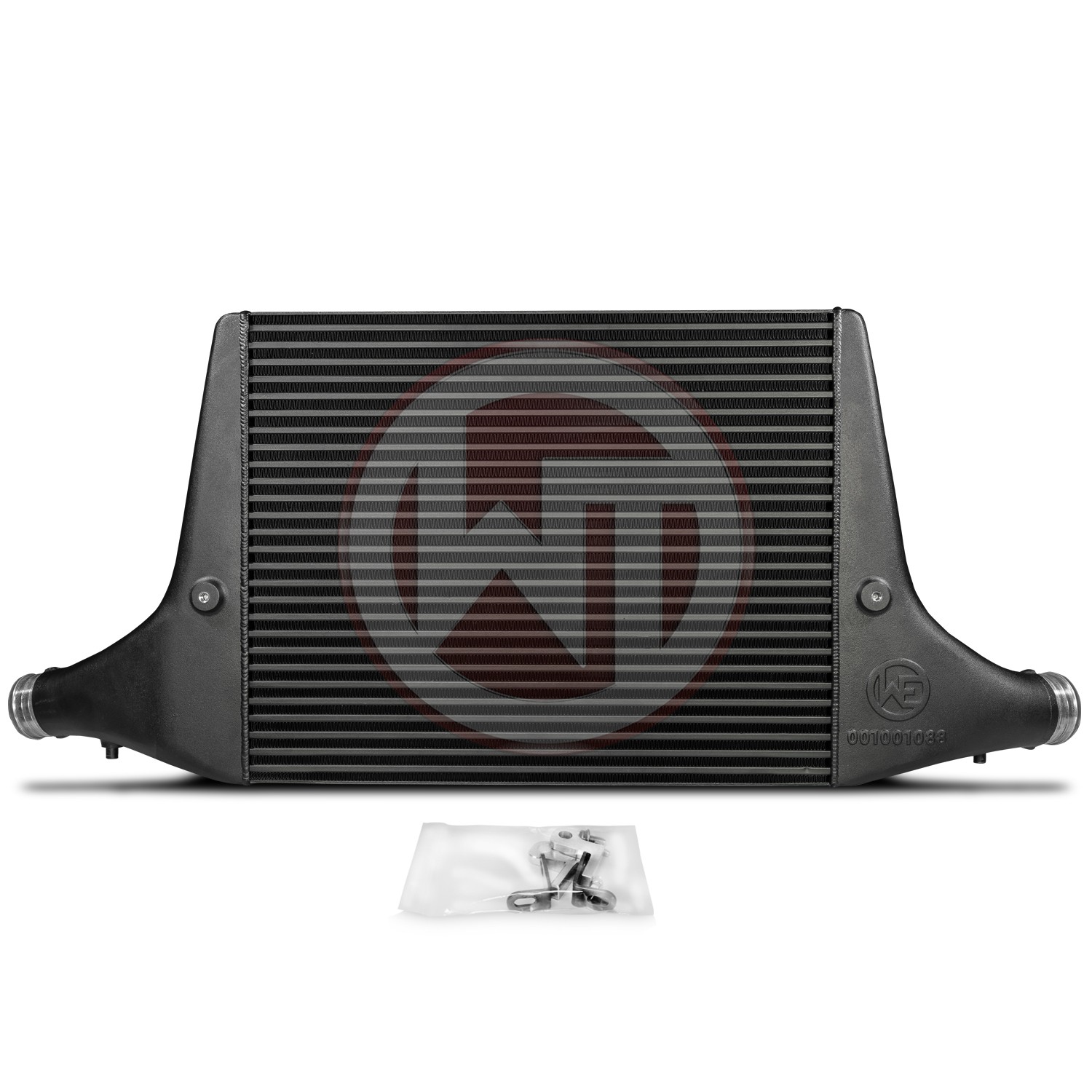

Audi S4 S5 3.0 TSFI Wagner Intercooler
Includes intercooler pipes.
Competition Audi S4 S5 Wagner Intercooler Kit fits to:
Audi S4 B9 3,0TFSI 260KW/354PS (2016+)
PLEASE STATE THE EXACT MODEL OF CAR WHEN ORDERING.
Intercoolers are a critical component to any turbocharger installation! The cooler the temperature of the intake air – the denser it is – the more oxygen it carries – the more performance it will give, so it’s very important to have maximum adiabatic efficiency!
However, big is not always better because we must also consider air-flow efficiency. The bigger the intercooler core – the more restriction to airflow it will have – giving a greater pressure drop – leading to lower boost pressure = less performance!
So, it is crucial to have adequate intercooler core volume to dissipate the heat, and with flow-bench/CFD designed flow path to minimise pressure drop.
Dimensions stock Intercooler:
720mm x 145mm x 80mm
V=8,35 Liter
A=1044 cm²
Dimensions WAGNERTUNING intercooler:
550mm x 445mm x 70mm
V=17,13 Liter
A=2447 cm²
packing list:
1 intercooler (coated black)
1 mounting material
1 pipe kit
1 installation instruction
The high-performance performance network offers very good cooling properties. The weight of the charge air cooler is 2x 5.7kg. In CAD developed free-form end-series made of cast aluminium for the best possible internal air flow. Overall, these charge air coolers have less back pressure than the serial cooler.
In addition, all our charge air coolers have an anti-corrosion coating with thermal conductive properties. This guarantees optimal cooling with a significant increase in performance. Completely ready-to-install kit, easy to replace with standard charge air coolers – including silicone hoses and aluminium adapters. Up to 6 bar tested and pressure-stable. All our products are subject to continuous qualitative monitoring.
