Description

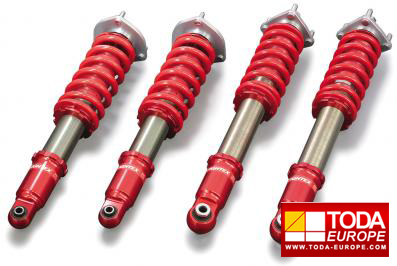

NSX Toda Racing FIGHTEX Dual Adjust Coilovers

Adjustable bottom brackets. The dual adjustable type allows quick and easy adjustment of the total length.

The total length of the damper can be tuned via the bottom bracket. The car ride height can be adjusted without touching the spring pre-load. Helping to find the delicate balance of traction and grip, through the various independent parameters of ride height, spring pre load and rebound stroke lengths.

Dual Adjust (DA) offers the adjustable bottom bracket for quick and easy changes on the overall length of dampers without making adjustments on the spring pre-load. It helps to find the delicate balance between traction and grip. TODA Racing utilizes the latest design and manufacturing technologies to produce FIGHTEX coilover systems. FIGHTEX Coilover systems should not be confused with cheaper height adjustable systems. The FIGHTEX system is a complete racing suspension and is specifically tuned for each vehicle application. All systems are produced from aluminum (not steel) to reduce un-sprung weight, aid in faster suspension cooling, and resistance to corrosion which is common with coilover dampers manufactured from steel. FIGHTEX suspension systems are among the world’s highest quality and highest performing Coilover systems. All development and manufacturing is done in house by TODA Racing.

NA1/2 NSX

NA1/2 FIGHTEX Damper KIT
Type
Kit contents		Damper + Spring + Pillow ball upper Mount
Model		NA1/2 (NSX)
Part No.		51520-NA1-000
Price (KIT)		£2500
Supplied spring rate [kgf/mm-mm]	Front	10K-160
	Rear	12K-160
Design		F/R Standard design
Remarks		Normal upper mount is unavailable.

Spring rate can be changed at the time of order (A price is the same).
Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

Damper KIT contents: Damper, main spring, pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot, car height adjustment wrench, damping force adjustment wrench, instruction manual.
