Sale!

Evo 6 FIGHTEX Dual Adjust Coilovers

£2,796.00

SKU: SKU-17443 Categories: ,

Description

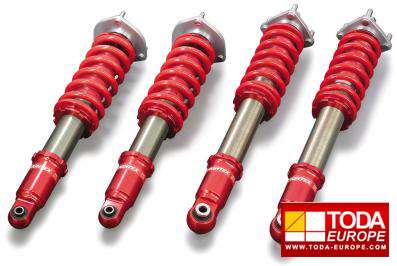

Evo 6 FIGHTEX Dual Adjust Coilovers

Adjustable bottom brackets. The dual adjustable type allows quick and easy adjustment of the total length.

The total length of the damper can be tuned via the bottom bracket. The car ride height can be adjusted without touching the spring pre-load. Helping to find the delicate balance of traction and grip, through the various independent parameters of ride height, spring pre load and rebound stroke lengths.

Dual Adjust (DA) offers the adjustable bottom bracket for quick and easy changes on the overall length of dampers without making adjustments on the spring pre-load. It helps to find the delicate balance between traction and grip. TODA Racing utilizes the latest design and manufacturing technologies to produce FIGHTEX coilover systems. FIGHTEX coilover systems should not be confused with cheaper height adjustable systems. The FIGHTEX system is a complete racing suspension and is specifically tuned for each vehicle application. All systems are produced from aluminium (not steel) to reduce un-sprung weight, aide in faster suspension cooling, and resistance to corrosion which is common with coilover dampers manufactured from steel. FIGHTEX suspension systems are among the worlds highest quality and highest performing coilover systems. All development and manufacturing is done in house by TODA Racing.

CP9A LANCER
well
TypeFS
*Click the damper images below to see larger pictures.
CP9A FIGHTEX Damper KIT
Type
TypeFS
TypeDATypeDA-G
TypeEX

TypeEX-G
Kit contentsDamper + Spring + Pillow ball upper mount
ModelCP9A (LANCER)
Part No.51500-CP9-00051520-CP9-00051530-CP9-00051540-CP9-00051550-CP9-000
Price (KIT)£2330
Price (damper only)
Price (damper + spring)
Supplied spring rate
[kgf/mm-mm]
Front10K-20010K-20012K-20010K-20012K-200
Rear8K-1608K-20010K-2008K-20010K-200
AccessoriesHelper springs
DesignF: Up side down design / R Standard design
Spring rate can be changed at the time of order (A price is the same).
Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)
Damper KIT contents: Damper, main spring, helper spring (for certain types only), pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot (rear), car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.

For info on Evo 6 FIGHTEX Dual Adjust Coilovers please go here

For info on our full range of goods and services please go here
