DC5 Toda Racing FIGHTEX Gymkhana Coilovers

Dual adjustment Gymkhana spec.

Designed for Gymkhana use only. 18 step damping force adjustment + full length adjustment. Designed for all the forms of Gymkhana found in Japan, the DA-G allows the car to be set up for the various conditions found at the track suck as weather and track surface. Drivers in the Japan championship use the adjustability to continually test and fine tune to find that winning advantage. The adjustability also allows you to continually get the best out of the latest tire compounds.

DC5 INTEGRA TypeR

TypeDA

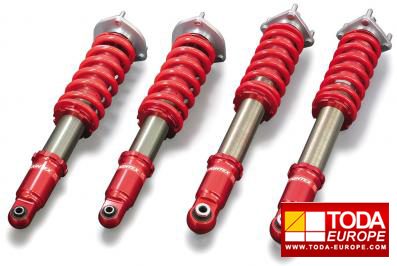

The product of above image is optional specification model that Green Chromate surface treatment is used on the outer cases and the front bottom brackets. Has at least twice as much resistance to corrosion as that of other companies plating techniques.
This optional specification is available for other models of FIGHTEX dampers.
→Check Overhaul and /or specification change price list.

*Click the damper images below to see larger pictures.

DC5 FIGHTEX Damper KIT
Type

Kit contents		Damper + Spring + Pillow ball upper Mount
Model		DC5 (INTEGRA TypeR)
Part No.		51520-DC5-000	51530-DC5-000	51540-DC5-000
Price (KIT)			£2850
Option		Pillow-ball bush (R ¥10,000)
Supplied spring rate [kgf/mm-mm]	Front	8K-160	16K-160	8K-160
	Rear	12K-140(ID70mm)	16K-140(ID70mm)	12K-140(ID70mm)
Accessories		Front helper springs	–	Front helper springs
Design		F:Upside down design / R:Standard design
Remarks		Normal upper mount is unavailable. *Rear springs ID:70.		Rear damper have no adjustable bracket for ride height adjustment. Normal upper mount is unavailable. *Rear springs ID:70.

Spring rate can be changed at the time of order (A price is the same).
ID60 – Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
ID70 – Spring rate kgf/mm (6, 8, 10, 12, 14, 16)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

Damper KIT contents: Damper, main spring, front helper spring (on certain types only), pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot (rear), car height adjustment wrench, damping force adjustment wrench, instruction manual.
