Description

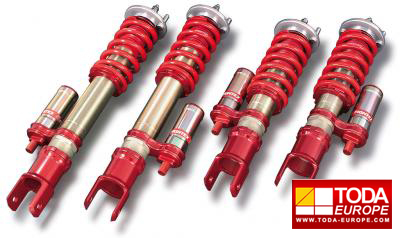

S2000 Toda Racing FIGHTEX EX Coilovers

The ultimate performer, incorporating advantages of both the ST and DA types.

Featuring independent bump and rebound 18 step tuning along with adjustable bottom bracket for full length adjustment independent of spring preload. For the ultimate performance.

AP1/2 S2000

TypeDA

*Click the damper images below to see larger pictures.

AP1/2 FIGHTEX Damper KIT
Type

Kit contents		Damper + Spring + Pillow ball upper Mount
Model		AP1/2 (S2000)
Part No.		51520-AP1-000	51530-AP1-000	51540-AP1-000
Price (KIT)				£3275
Price (damper only)
Price (damper + spring)
Supplied spring rate [kgf/mm-mm]	Front	10K-200	14K-200	12K-200
	Rear	10K-160	14K-160	12K-160
Accessories		R: Helper springs	R: Helper springs	–
Design		F/R Standard design

Spring rate can be changed at the time of order (A price is the same).
Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

Damper KIT contents: Damper, main spring, rear helper spring (on certain types only), pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.
