Civic FK8 HKS Sports Turbine Kit

£3,420.00

Description

FK8 HKS Sports Turbine Kit – 11004-AH006 – For FK8 and FL5

GT SPORTS TURBINE KIT

Code No. 11004-AH006

Power increase at high RPM that cannot be experienced with the stock turbo

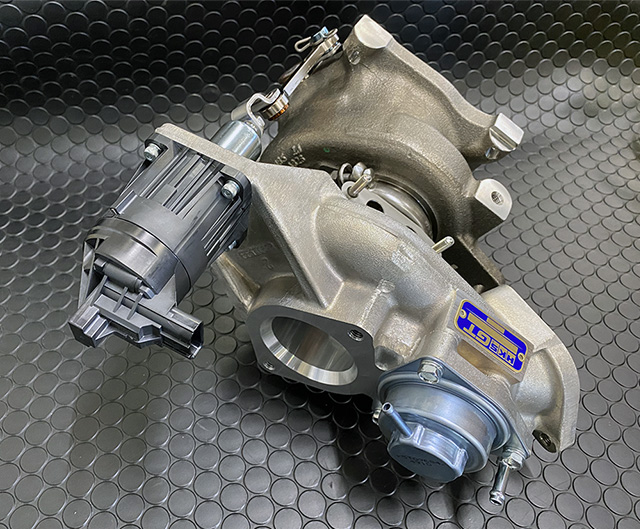

FK8 HKS Sports Turbine



■Features

  • High RPM output improvement not achievable with stock turbo.
  • No fuel system upgrade required thanks to optimal size design.
  • Direct fit with no modification needed with the same layout design as the stock turbo.
  • Intercooler Kit is available separately for safe high-power use.
  • Turbo can be used without any piggybacks, but remapping is recommended to fully optimize turbo performance.

POINT

  • GT4845 maintains boost at high RPM, unlike stock turbos.
  • Tested at Fuji Speedway: +12 km/h top speed (232 to 244 km/h) and -3 seconds lap time.

■Included Components

  • FK8 HKS Sports Turbine includes necessary gaskets (for Turbo, Exhaust, Intake, Water lines, Oil lines) and studs/bolts for turbo replacement.

■Performance Data

  • The GT4845 Sports Turbo Kit with Mastery ECU PHASE3 (Only available in Japan) achieves a 19kW (64ps) increase over stock.

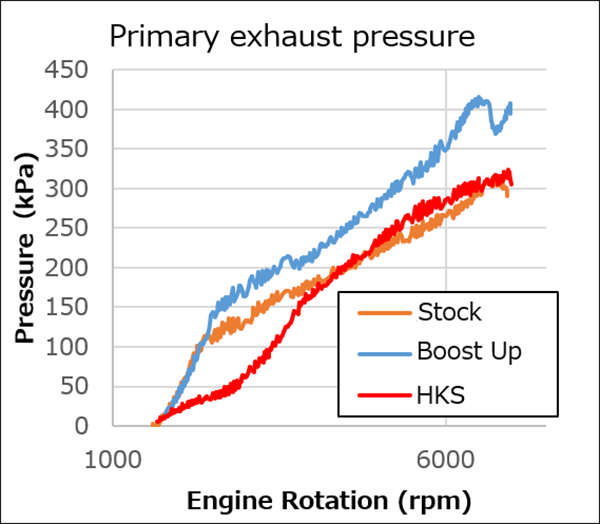

  • The primary exhaust pressure is the same as stock, allowing for efficient boost and a smooth power increase without straining the engine.



Test vehicle specifications
VehicleCivic Type R (FL5)
TurboHKS GT4845 Sports Turbine Kit
ECUHKS Mastery ECU  PHASE3
ExhaustHKS LEGAMAX SPORTS
CoolingHKS INTERCOOLER KIT
OthersHKS PIPING KIT

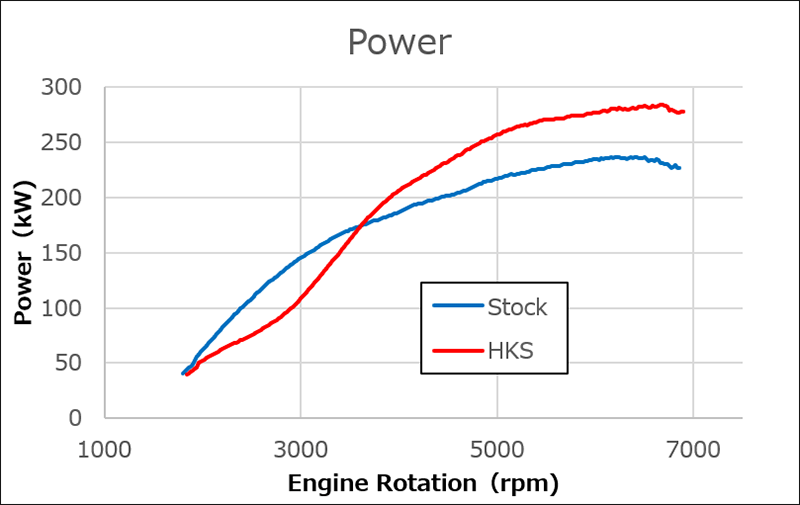

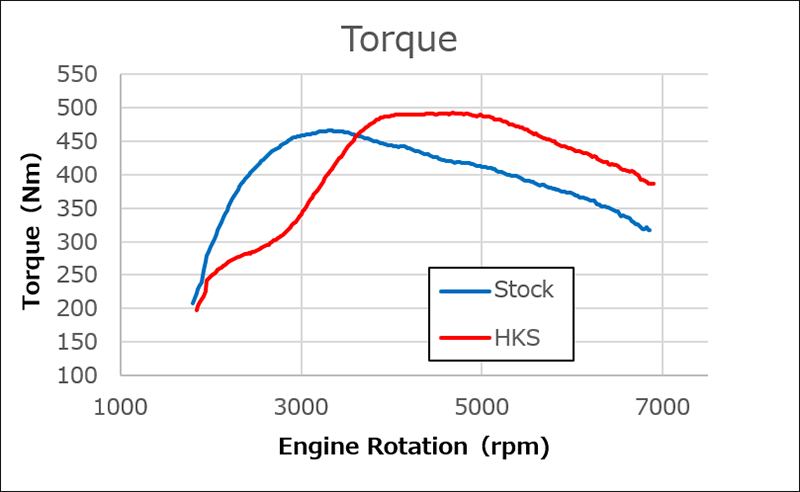

Output Data
NormalGT4845 Sports Turbine Kit
 HKS Mastery ECU PHASE3 (JDM)
MAX POWER242kW(330ps)/6,220rpm282kW(384ps)/6,600rpm
MAX TORQUE478N・m(48.7kgf・m)/3,320rpm492N・m(50.2kgf・m)/4,680rpm



VehicleModelEngineModel YearTypeTurbine SizeBoost PressureCode No.ManualRemarks
CIVIC TYPE RFL5K20C22/09 –GT SPORTS TURBINE KITGT4845Based on ECU data (Electric Actuator)11004-AH006
