FN2 Toda Racing Fightex DA Coilovers

£2,940.00

Description

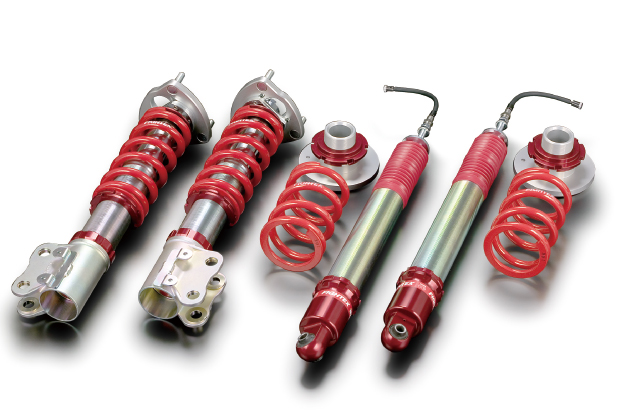

FN2 Toda Racing Fightex DA Coilovers

Adjustable bottom brackets. The dual adjustable type allows quick and easy adjustment of the total length.

The total length of the damper can be tuned via the bottom bracket. The car ride height can be adjusted without touching the spring pre-load. Helping to find the delicate balance of traction and grip, through the various independent parameters of ride height, spring pre load and rebound stroke lengths.

FN2 CIVIC TypeR
well
FN2 FIGHTEX Damper KIT
TypeTypeDA
Kit contentsDamper + Spring + Pillow-ball upper Mount
ModelFN2 (CIVIC TypeR)
Part No.51520-FN2-000
Price (KIT)¥278,000
Price (damper only)51522-FN2-000 ¥235,000
Price (damper + spring)51521-FN2-000 ¥253,000
OptionPillow-ball bush (R ¥10,000)
Supplied spring rate
[kgf/mm-mm]
Front10K-200
Rear8K-160
Adjustable height range to standard heightFrontapprox. -10mm ~ -50mm
Rearapprox. -5mm ~ -50mm
DesignF:Upside down design / R:Standard design
Remarks*The car height adjustment unit is included for rear spring position.
*STD rear spring’s upper rubber seat requires a small modification.
*This product is developed and manufactured base on 2007 right hand drive vehicle.
Spring rate can be changed at the time of order (A price is the same).
Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)
Damper KIT contents: Damper, main spring, car height adjustment lower unit (rear), pillow-ball upper mount (front), spring upper seat, spring lower seat, lock seat, dust boot, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.
Since being established in 1971, TODA RACING has been involved in motorsport through many different projects including engine development and the in-house manufacturing of motorsport parts. Since that time TODA RACING has continued to expand, to where it now manufactures in-house both motors and inverters. Designs, builds and supplies various test stands. As well as developing and provides services for prototypes and R&D vehicle builds. All of which have may satisfied customers. TODA RACING is about removing standard conventions to help push forward, with the motto of “Transforming Automotive Dreams into Reality”.
