HKS Hipermax R JZA80

£1,830.00

Description

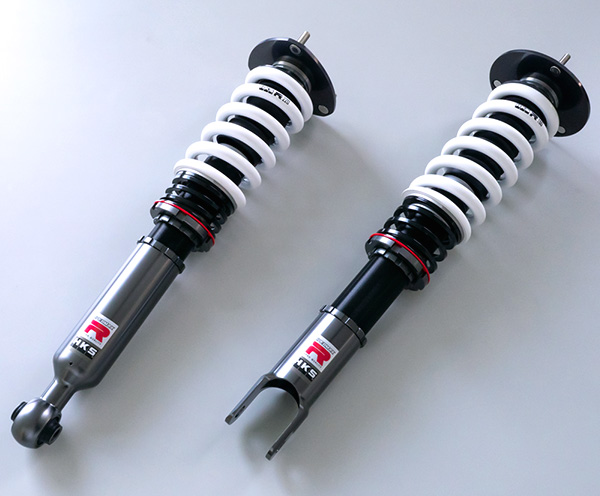

HKS Hipermax R JZA80

SUPRA JZA80

R

Code No. 80310-AT002



The fun to drive at will and the balance can be adapted from circuit to winding road.
Reised Driving-Comfort, “Ultimate All-Rounder”











Application

Engine2JZ-GTE
Model Year93/06 – 02/07
RemarksIt cannot be installed on vehicle equipped with REAS (Can be installed if hydraulic system is removed)

Specification

FRONTREAR
Damping force adjustment30 steps30 steps
Base valve
Height adjustable lower bracket
Upper mountSpherical bearingSpherical bearing
Inverted/Normal typeNormalNormal
Damper/Spring layoutCoiloverCoilover
Spring rate change at factoryPossiblePossible
Damping force adjustment with wire
Helper spring
(Spring rate N/mm)
〇 (19.8)〇 (19.8)
Ride Heightmm
Factory *2Test dataAdjustable range
High – Low *3
Drivable range
High – Low *4
FRONTRide height *1656692 ~ 612692 ~ 612
Against stock-360 ~ -800 ~ -80
REARRide height *1655668 ~ 614668 ~ 614
Against stock-130 ~ -540 ~ -54



*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.

Kit information

Spring of Full Kit

FR
Spring rate N/mm(kgf/mm)216 ( 22.0 )157 ( 16.0 )
Free height (mm)170200
Spring typeStraightStraight
Recommended range to change spring rate N/mm(kgf/mm)±20 ( 2 )±20 ( 2 )

Specification of damper

FR
Damping force (Rebound/Damping)N*2010 / 6671167 / 549
Default position of dial1515
Remaining damper stroke (Rebound/Damping)mm47 / 5255 / 81

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

FR
DefaultTestDrivable limit
High *
Drivable limit
Low *
DefaultTestDrivable limit
High *
Drivable limit
Low *
Length of
case (mm)
379399360369379344
Spring
Set length(mm)
223223229272272278
Length to ride hight
adjuster (mm)
25450839352
Lever ratio1.781.31

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.

Test vehicle information

FR
Vehicle weight kg837 (830)693 (680)
Tire size (Air pressure) kPa265 / 35 – 18 ( 200 )265 / 35 – 18 ( 200 )
Wheel size10 JJ × 18 inset 4510 JJ × 18 inset 35
Alignment
(Toe/Camber)
Test datain 0 mm / -2°36′in 2 mm / -3°39′
Standard valuein 0 ± 1 mm / 0°20′ ± 0°30′in 3 ± 1 mm / -1°35′ ± 0°30′

* Test data at HKS.



Parts List   * It may be changed without prior notice.



Point

The long-awaited HIPERMAX R, which is born with the latest theory in addition to cultivated through HIPERMAX IV SP, is newly released.
The new SRF (Super Response Fluid) and LVS (Low Vibration Spring) have been adopted to achieve unprecedented levels of both driving and ride comfort.
The newly adopted retainer, which blocks the spring load and eliminates the bending load on the spring and absorbs torsion to improve the movement of damper, enabling the LVS (Low Vibration Spring) to demonstrate its performance in any situation.
New internal components allow for a wide range of settings with a large amount of dial range.
Spring insulators in the front and rear have been installed to make ride-height adjustment easier.
We have done the setting at Fuji Speedway with ADVAN A052 tires. The damper force range is 4-click of front and 5-click of rear. Please refer when driving on track.
Although it is possible to change the spring rate when being shipped from the factory, therefore it is a possibility that the ride quality, driving feel, and understeer/oversteer characteristics may not be what was intended by the development team, so we hope that you will enjoy the standard rate that we have carefully selected.
Please enjoy evolved HIPERMAX!
