Description

3SGTE TODA 2.2 Stroker Kit With Rods

3SG SW20 MR2

Click here for
“Central Oil Feed” information.

Defric coating (Lubricous film) is applied to the piston skirt, for a reduction in friction and loads as well as improved durability.

3SG(SW20) Increased Capacity 2200 KIT I Type Low Comp
Engine Type	3SG (SW20)
Part No.	13001-3SG-T01-I
Price (set)	£3995
Bore×Stroke	ø87.00×93mm
Displacement	2211cc
Crown Volume *1	-8.0cc/-15.7cc
Projection Height *2	-1.3mm
Reference C/R *3	STD head GK t=1.2mmξ≈8.7:1 (ver.III-V) STD head GK t=1.5mmξ≈8.4:1 (ver.I, II)
1:Crown volume is measured “from the piston shoulder”/”from the deck of the block”. 2:Piston shoulder height is measured from the deck of the block. *3:The compression ratios given above are only to be taken as a guide, measurements are required. The opening in the oil pan baffle plate may need to be modified. In use of center oil spray, connecting rod bearings may need a oil feed hole drilling modification depending on the type of bearings to use.

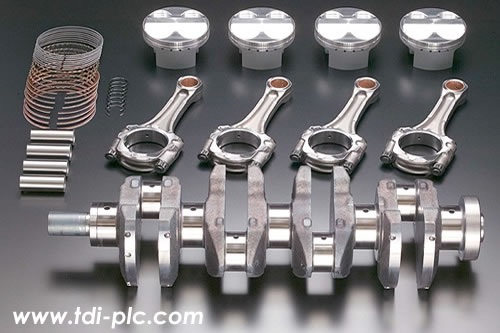

KIT Contents
1	TODA forged piston KIT ø87.00mm (2211cc)
2	Special crankshaft (Long stroke, High accuracy dynamic balanced)
3	I Section Strengthened Connecting-rods (Fully floating with bush & balanced)

For info on Toyota 3SGTE TODA 2.2 Stroker Kit With Rods please go here

For info on our full range of goods and services please go here

Since being established in 1971, TODA RACING has been involved in motorsport through many different projects including engine development and the in-house manufacturing of motorsport parts. Since that time TODA RACING has continued to expand, to where it now manufactures in-house both motors and inverters. Designs, builds and supplies various test stands. As well as developing and provides services for prototypes and R&D vehicle builds. All of which have may satisfied customers. TODA RACING is about removing standard conventions to help push forward, with the motto of “Transforming Automotive Dreams into Reality”.
