M16A Toda Ultra High Comp Pistons

£780.00

Description

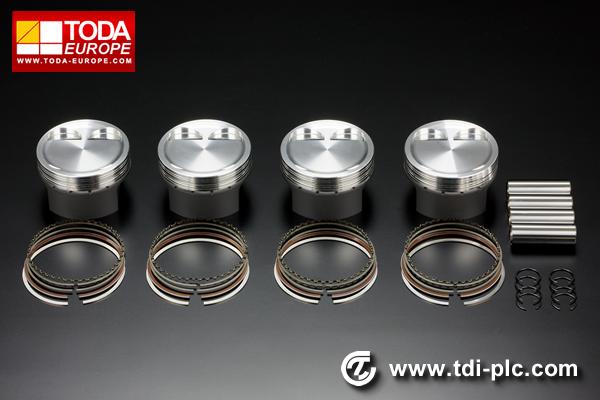

M16A Toda Ultra High Comp Pistons

M16A(ZC31S/ZC32S) SWIFT SPORT
M16A(ZC31S/ZC32S) Ultra High Comp Forged Piston KIT for Increased Capacity 1884
Increasing the capacity from 1,586cc to 1,884cc through a larger bore improves the whole engine performance. With retaining the standard stroke, the engines sporty characteristics are maintained.

Defric coating (Lubricous film) is applied to the piston skirt for a reduction in friction and loads as well as improved durability.

*TODA Power Liner KIT and TODA Head Gasket are required. (Sold separately)
M16A(ZC31S/ZC32S) Power Liner KIT
M16A(ZC31S/ZC32S) High Stopper Metal Head Gasket


M16A(ZC31S/ZC32S) Ultra High Comp Forged Piston KIT
Engine typeM16A(ZC31S/ZC32S)
Part No.13050-M16-BH0
Price (set)£650
Bore×Strokeø85.00×83mm
Displacement1884cc
Crown Volume *1-4.7cc/-6.4cc
Projection Height *2-0.3mm
Reference C/R *3,TODA head GK t=0.6mm ξ≈13.2:1
*1:Crown volume is measured “from the piston shoulder”/”from the deck of the block”.
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required.

For info on Suzuki M16A Toda Ultra High Comp Pistons please go here

For info on our full range of goods and services please go here

TODA Racing uses the latest design and manufacturing equipment to produce TODA products. All product design is carried out using the IBM CATIA (CAD/CAM/CAE) which is the same system used by Honda, Boeing, Ferrari, and other high technology manufacturers.

All TODA products are manufactured in-house by TODA. Having an in-house manufacturing capability means there are no compromises in design or manufacturing. Product testing is carried using advanced analytical software, engine bench testing (engine dyno), and race testing.

How to Order TODA Europe Racing Products:
TODA products can be ordered from ‘Torque Developments International PLC’ by phone, fax or email via the details listed below. We are hoping to have a shopping cart system in place in the near future as we realise this will make ordering easier. However, many of our customers wish to speak regarding technical information before ordering and this is invariably easier via telephone than any other means so it can be beneficial to call us. Alternatively you can buy via one of our authorised dealers.

TODA Racing was established in 1970 in Okayama Japan as a maintenance company for racing vehicles and engines. Since its inception, company activities have grown to include manufacturing and development of racing engines for various forms of Japanese motorsports, ranging from Formula 3 to GT300. The experience gained in the realm of professional motorsports is applied to all TODA Racing products available to consumers.
With over 30 years of experience, TODA Racing has grown to become one of Japan’s premiere race engineering and manufacturing companies. TODA’s team of experienced racing engineers use the latest product design, manufacturing, and testing equipment available like the IBM CATIA CAD/CAM/CAT system.

Since being established in 1971, TODA RACING has been involved in motorsport through many different projects including engine development and the in-house manufacturing of motorsport parts. Since that time TODA RACING has continued to expand, to where it now manufactures in-house both motors and inverters. Designs, builds and supplies various test stands. As well as developing and provides services for prototypes and R&D vehicle builds. All of which have may satisfied customers. TODA RACING is about removing standard conventions to help push forward, with the motto of “Transforming Automotive Dreams into Reality”.
