Description

4G63 Toda Racing Forged Pistons

PLEASE STATE SIZE REQUIRED AT THE TIME OF ORDERING.

4G63 LANCER EVO I~IX

Defric coating (Lubricous film) is applied to the piston skirt, for a reduction in friction and loads as well as improved durability.

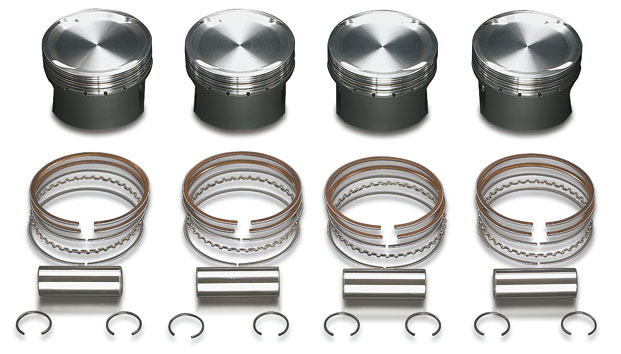

4G63 Forged Piston KIT for EVO I ~ IX
Engine type	4G63 for EVO I ~ IX
Part No.	13020-4G6-3T0	13040-4G6-3T0
Price (set)	£770
Bore×Stroke *4	ø86.00×88mm	ø87.00×88mm
Displacement	2045cc	2092cc
Crown Volume *1	-12.2cc/-13.9cc	-12.2cc/-14.0cc
Projection Height *2	-0.3mm
Reference C/R *3, 5, 6	TODA head GK 86.5mm t=1.2mm EVO I~VIII ξ≈8.6:1 TODA head GK 86.5mm t=1.5mm EVO I~VIII ξ≈8.4:1	TODA head GK 87.5mm t=1.2mm EVO I~VIII ξ≈8.8:1 TODA head GK 87.5mm t=1.5mm EVO I~VIII ξ≈8.6:1
1:Crown volume is measured “from the piston shoulder”/”from the deck of the block”. 2:Piston shoulder height is measured from the deck of the block. 3:The compression ratios given above are only to be taken as a guide, measurements are required. 4:Standard stroke. 5:EVO I~VIII designed using 46cc as combustion chamber volume. 6:Based on EVO IX combustion chamber volume of 44cc, it will rise listed C/R value by 0.2 :i.e. 8.6→8.8
