Description

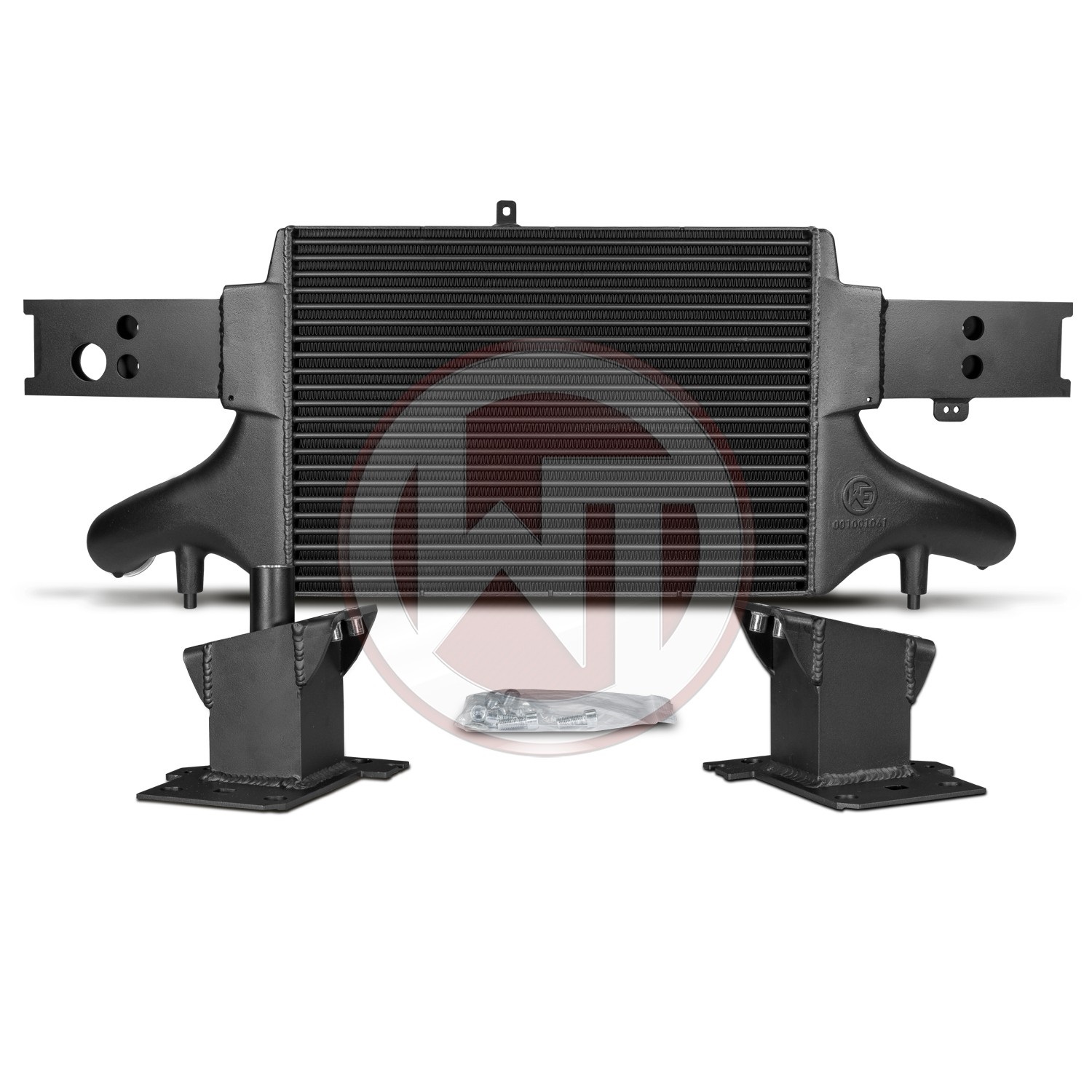

Audi RS3 8V Wagner Intercooler
Competition Audi RS3 8V Wagner Intercooler Kit fits to:
Audi RS3 8V Sportback 270KW/367PS 04/2015 04/2016
Audi RS3 8V Sportback/Sedan 294KW/400PS 08/2017+
PLEASE STATE THE EXACT MODEL OF CAR WHEN ORDERING.
Intercoolers are a critical component to any turbocharger installation! The cooler the temperature of the intake air – the denser it is – the more oxygen it carries – the more performance it will give, so it’s very important to have maximum adiabatic efficiency!
However, big is not always better because we must also consider air-flow efficiency. The bigger the intercooler core – the more restriction to airflow it will have – giving a greater pressure drop – leading to lower boost pressure = less performance!
So, it is crucial to have adequate intercooler core volume to dissipate the heat, and with flow-bench/CFD designed flow path to minimise pressure drop.
OEM Intercooler: Cooling Surface 1024cm² / Charge-Air-Volume 8.2L
WT EVO 3 Competition: Cooling Surface 1890cm² / Charge-Air-Volume 16.5L
Packing List:
1 Intercooler including cross member
1 Set Mounting Material
1 Installation Manual
Comment:
– optional with additional bracket for vehicles with adaptive cruise control ACC (recalibration of the ACC may be necessary)
– US cars with ACC need the EU ACC-sensor for 100% fitment
The high-performance performance network offers very good cooling properties. The weight of the charge air cooler is 2x 5.7kg. In CAD developed free-form end-series made of cast aluminium for the best possible internal air flow. Overall, these charge air coolers have less back pressure than the serial cooler.
In addition, all our charge air coolers have an anti-corrosion coating with thermal conductive properties. This guarantees optimal cooling with a significant increase in performance. Completely ready-to-install kit, easy to replace with standard charge air coolers – including silicone hoses and aluminium adapters. Up to 6 bar tested and pressure-stable. All our products are subject to continuous qualitative monitoring.
