Civic FL5 HKS Intercooler & Pipe Kit

R TYPE INTERCOOLER KIT for CIVIC TYPE-R FL5

■Features

Intercooler Core

• A huge 22.4% increase in core’s area leads to immense improvement in cooling.
• The OEM core does not provide sufficient cooling capacity when boosting up, with increased core capacity it will be compatible with everything from boosting up to turbo upgrade.
• The core is designed to be also installed with OEM piping

■Configuration

[Core Only]

• Intercooler core
• Masking sheet for logo spray

【パイピングキット】

• Aluminum bent pipe (IN/OUT)
• Cast pipe (IN/OUT)
• Silicone hose
• Hose band
• Bracket (IN/OUT)
• Special bolts and nuts

■Important Notes

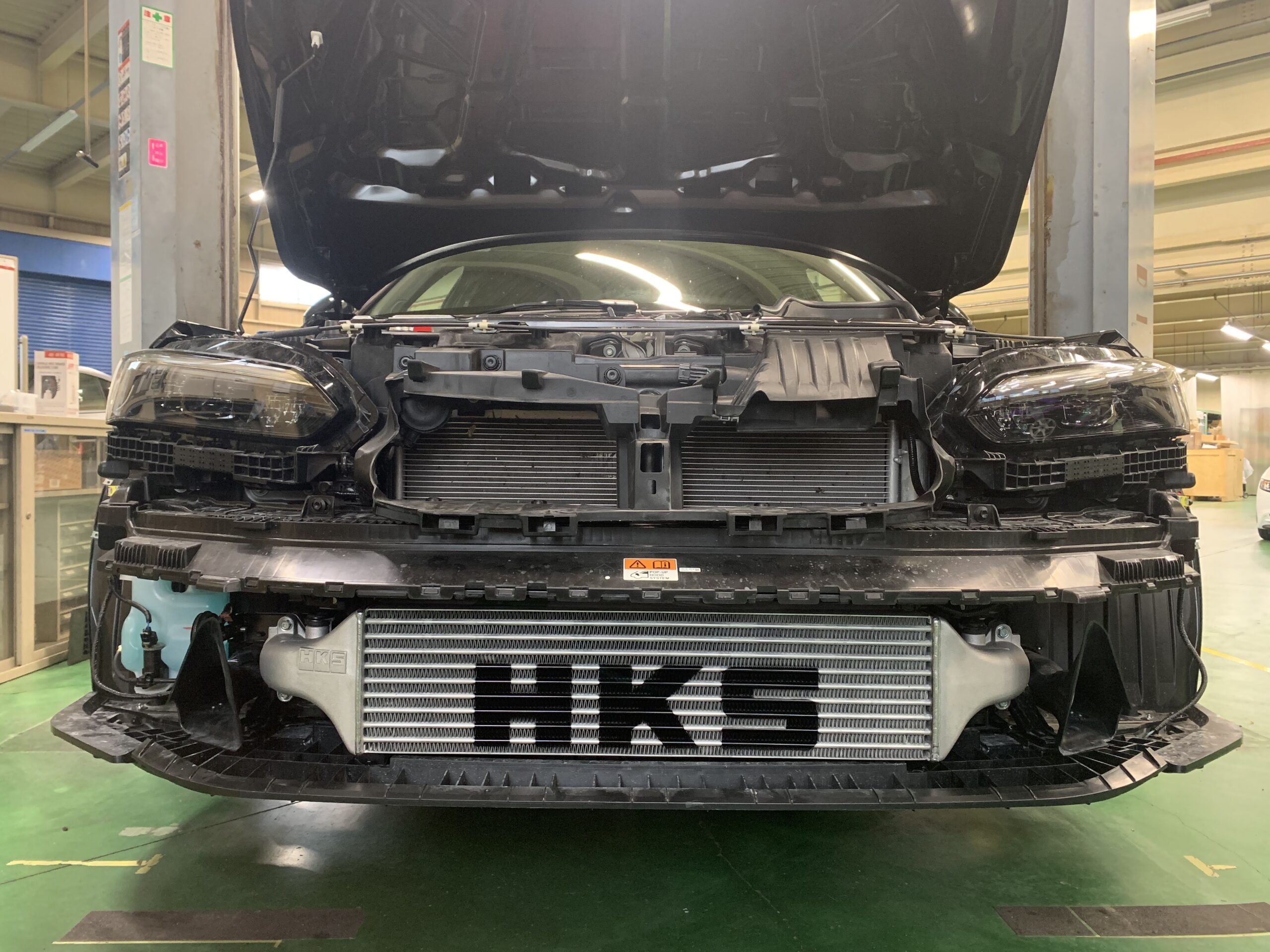

*1. To install the intercooler ASSY, it is necessary to modify the air guide inside the bumper and relocate the outside air temperature sensor. No modification of the reinforcement is required.
*2. To install the piping, it is necessary to shave the bracket on the vehicle body.
*3. For the FULL KIT, *1 and *2 must be met.

■Core Size Comparison

	HKS	Stock
Exterior
Material & Specs	Core Size: 695 x 178 x 100 Core specs: 10 fins, 9 Tubes Tank: Aluminum cast	Core Size: 639 x 158 x 64 Core specs: 11 fins, 10 Tubes Tank: Resin
Performance Data	Power: 245[kW](333[PS]/6500[rpm] Torque: 449.5[Ｎ・m] (45.9[kg・m]）/3260[rpm] Cooling performance: I/C outlet 30.3℃ (7000[rpm]) Cooling efficiency: 88%(7000[rpm])	Power: 243[kW](331[PS]/6420[rpm] Torque: 445.8[Ｎ・m] (45.5[kg・m]）/3360[rpm] Cooling performance: I/C出口56.0℃ (7000[rpm]) Cooling efficiency: 67%(7000[rpm])

■Performance Comparison
