Description

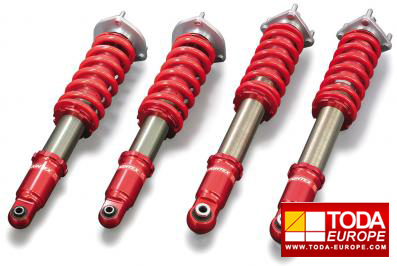

Alteza FIGHTEX Dual Adjust Coilovers

Adjustable bottom brackets. The dual adjustable type allows quick and easy adjustment of the total length.

The total length of the damper can be tuned via the bottom bracket. The car ride height can be adjusted without touching the spring pre-load. Helping to find the delicate balance of traction and grip, through the various independent parameters of ride height, spring pre load and rebound stroke lengths.

SXE10 ALTEZZA

SXE10 FIGHTEX Damper KIT
Type
Kit contents		Damper + Spring + Pillow ball upper mount
Model		SXE10 (ALTEZZA)
Part No.		51520-XE1-000
Price (KIT)		£1800
Price (damper only)		51522-XE1-000 ¥180,000
Price (damper + spring)		51521-XE1-000 ¥198,000
Supplied spring rate [kgf/mm-mm]	Front	12K-200
	Rear	9K-200
Design		F/R: Standard design
Remarks		When the standard rear upper mount is used, 160 mm length springs are required.

-Spring rate can be changed at the time of order with no additional cost (depending on the spring rate, damping force may need to be changed with extra cost).
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

Damper KIT contents: Damper, main spring, pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.
