Description

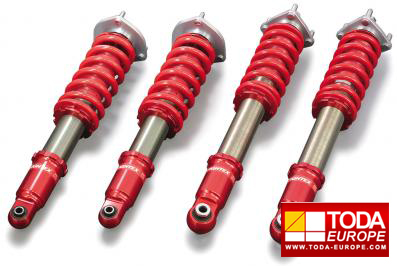

GC8 FIGHTEX Dual Adjust Coilovers

Adjustable bottom brackets. The dual adjustable type allows quick and easy adjustment of the total length.

The total length of the damper can be tuned via the bottom bracket. The car ride height can be adjusted without touching the spring pre-load. Helping to find the delicate balance of traction and grip, through the various independent parameters of ride height, spring pre load and rebound stroke lengths.

GC8 IMPREZA

TypeFS

*Click the damper images below to see larger pictures.

GC8 FIGHTEX Damper KIT
Type
Type
Kit contents		Damper + Spring + Pillow ball upper mount
Model		GC8 (IMPREZA)
Part No.		51500-GC8-000	51520-GC8-000	51530-GC8-000	51540-GC8-000	51550-GC8-000
Price (KIT)			£2050
Price (damper only)					–	–
Price (damper + spring)					–	–
Supplied spring rate [kgf/mm-mm]	Front	10K-200	10K-200	9K-200	10K-200	9K-200
Supplied spring rate [kgf/mm-mm]	Rear	8K-160	8K-200	8K-160	8K-200	8K-160
Accessories		Helper springs	–	–	–	–
Design		F/R: Up side down design

Spring rate can be changed at the time of order (A price is the same).
Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

Damper KIT contents: Damper, main spring, helper spring (for certain types only), pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.

Dual Adjust (DA) offers the adjustable bottom bracket for quick and easy changes on the overall length of dampers without making adjustments on the spring pre-load. It helps to find the delicate balance between traction and grip. TODA Racing utilizes the latest design and manufacturing technologies to produce FIGHTEX coilover systems. FIGHTEX coilover systems should not be confused with cheaper height adjustable systems. The FIGHTEX system is a complete racing suspension and is specifically tuned for each vehicle application. All systems are produced from aluminium (not steel) to reduce un-sprung weight, aide in faster suspension cooling, and resistance to corrosion which is common with coilover dampers manufactured from steel. FIGHTEX suspension systems are among the worlds highest quality and highest performing coilover systems. All development and manufacturing is done in house by TODA Racing.
