GDB FIGHTEX Dual Adjust Coilovers

Description

GDB FIGHTEX Dual Adjust Coilovers

PLEASE STATE THE MODEL OF GDB AT THE TIME OF ORDERING

Adjustable bottom brackets. The dual adjustable type allows quick and easy adjustment of the total length.

The total length of the damper can be tuned via the bottom bracket. The car ride height can be adjusted without touching the spring pre-load. Helping to find the delicate balance of traction and grip, through the various independent parameters of ride height, spring pre load and rebound stroke lengths.

GDB -A/-B, C/D IMPREZA

TypeDA

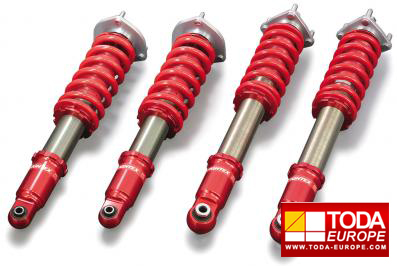

The product of above image is optional specification model that Green Chromate surface treatment is used on the outer cases and the front bottom brackets. Has at least twice as much resistance to corrosion as that of other companies plating techniques. This optional specification is available for other models of FIGHTEX dampers. →Check Overhaul and /or specification change price list.

*Click the damper images below to see larger pictures.

GDB FIGHTEX Damper KIT Type Kit contents Damper + Spring + Pillow ball upper mount Model GDB -A/-B (IMPREZA) Part No. 51520-GDB-XXX Price (KIT) £2650 £2650 (Green Chromate spec) Price (damper only) – – Price (damper + spring) 51521-GDB-000 ¥238,000 51531-GDB-000 ¥258,000 – – Supplied spring rate [kgf/mm-mm] Front 8K-200 12K-200 8K-200 12K-200 Rear 5K-200 9K-200 5K-200 9K-200 Design F/R: Up side down design

Spring rate can be changed at the time of order (A price is the same). Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22) -Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

Damper KIT contents: Damper, main spring, pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, car height adjustment wrench, damping force adjustment wrench, instruction manual. Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.
