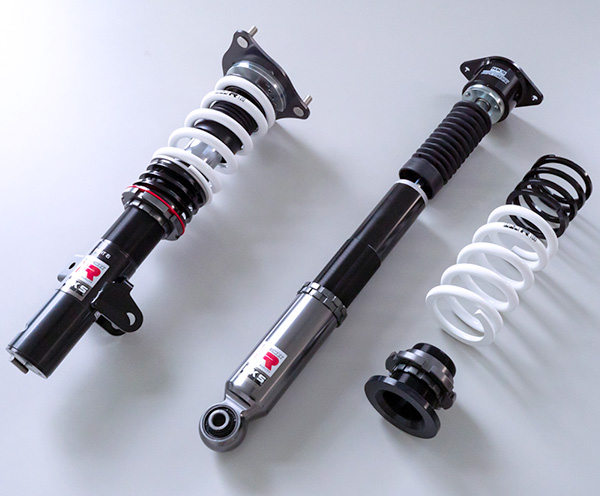

FK8 HKS Hipermax R Suspension Kit

R

FK8 HKS Hipermax R Code No. 80310-AH003

The fun to drive at will and the balance can be adapted from circuit to winding road.
Raised Driving-Comfort, “Ultimate All-Rounder”

Application

EngineK20C
Model Year17/09 – 22/08
RemarksRemark: This kit is for CIVIC TYPE R, which is not able to adopt on other grades of CIVIC.
*Error is displayed when the stock dampers are removed.
An optional canceller is required to avoid the error display.

Specification

FRONTREAR
Damping force adjustment30 steps30 steps
Base valve
Height adjustable lower bracket×
Upper mountSpherical bearingSpherical bearing
Inverted/Normal typeInvertedNormal
Damper/Spring layoutCoiloverSeparated
Spring rate change at factoryPossiblePossible
Damping force adjustment with wire
Helper spring
(Spring rate N/mm)
〇 (19.8)〇 (19.8)
Ride Heightmm
Factory *2Test dataAdjustable range
High – Low *3
Drivable range
High – Low *4
FRONTRide height *1649660 ~ 633660 ~ 639
Against stock-23-11 ~ -39-11 ~ -33
REARRide height *1650675 ~ 626675 ~ 626
Against stock-28-3 ~ -52-3 ~ -52



*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.

Kit information

Spring of Full Kit

FR
Spring rate N/mm(kgf/mm)118 ( 12.0 )98 ( 10.0 )
Free height (mm)150150
Spring typeStraightStraight
Recommended range to change spring rate N/mm(kgf/mm)+20 ( 2 )+20 ( 2 )

Specification of damper

FR
Damping force (Rebound/Damping)N*1172 / 530294 / 280
Default position of dial1515
Remaining damper stroke (Rebound/Damping)mm53 / 4677 / 72

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

FR
DefaultTestDrivable limit
High *
Drivable limit
Low *
DefaultTestDrivable limit
High *
Drivable limit
Low *
Length of
case (mm)
306306306399411373
Spring
Set length(mm)
203192213
Length to ride hight
adjuster (mm)
526342476629
Lever ratio1.001.34(spg) , 0.93(dmp)

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.

Test vehicle information

FR
Vehicle weight kg873  (860)529  (530)
Tire size (Air pressure) kPa265 / 35 – 18 ( 200 )265 / 35 – 18 ( 200 )
Wheel size9.5 JJ × 18 inset 459.5 JJ × 18 inset 45
Alignment
(Toe/Camber)
Test dataout 0.5mm / -3°45′0 mm / -2°32′
Standard valuein 0 ± 2 mm / -1°20′ ± 30′in 2 + 2 -1 mm / -1°30′ ± 45′

* Test data at HKS.

Parts List   * It may be changed without prior notice.



FK8 HKS Hipermax R Point

The kit was tested with ADVAN A052 Tires(235/40R18) at Fuji Speedway Racing Course.
Spring rates are thoroughly tested. This setting allows the driver to control Civic R easily by changing its movement at their will.
Although the FK8 Civic R has a basic understeer movement, we have made settings that allow the driver to change direction as much as possible, so that the driver can feel comfortable under tracking.
Since the FK8 makes it easier to change the direction of the car by actively shifting the load, increasing the front spring rate will bring out stronger understeer movement.
The newly adopted oil makes a large range of dial adjustment, allowing the users to set the movement they like.
Even though this kit has such sport driving performance, we also pursuit the comfort which is as good as high-performance shock absorber in city driving. With just a dial adjustment, this kit can perform as urban cruiser.
For those who install size 295 in the front or A052 or higher high-grip tires, a spring rate increase from 2 kg to 4 kg in the front and 2 kg in the rear is recommended.
With stock tire wheels installed, if the front is lower than 42mm, the tires and suspension will interfere around the maximum steering angle. Please note that this will vary depending on the rim width and offset of the wheel.
(The error that appears when the stock suspension is removed can be avoided by installing an optional canceller.) ※We will be on sale.

■ HIPERMAX R Special Equipment

HIPERMAX R Exclusive newly developed oil “SRF (Super Response Fluid)”

Special high-viscosity oil that is resistant to heat sagging has been developed. Damping starts up from a very low speed range, resulting in reliable handling, great damping and high stability.

HIPERMAX R Exclusive High-Strength Spring “LVS(Low Vibration Spring)”

Newly developed special spring for high-strength wire that is ideal for sports driving. Provides excellent response and smooth ride.

Spring Retainer

Retainer on top of spring is standard equipment. This eliminates side forces and lowers friction. Stability is improved by following changes in load.

■ HIPERMAX R Core Technology

Dual PVS: Dual Preload Valve System

Features the Dual Preload Valve System originally designed for the HIPERMAX S. By carefully selecting valve shims for each vehicle model, the settings are tailored to the vehicle to provide direct handling and reliable stability.

WR Needle: Wide range damping force adjustment mechanism

The improved shape of the needle expands the oil relief channel. Each step of the 30 steps adjustment is now more prominent. Having softer adjustment options gives more options for street driving.

ADVANCED BUMP RUBBER

The advanced bump rubber newly featured for HIPERMAX S is utilized.
The shape aims for an early bump touch, gradually damping the load and suppressing abrupt changes in movement.

Single Tube System

The Mono-Tube design of the HIPERMAX series is adopted. The structure allows the gas and oil chambers to be separated, and the use of a large-diameter piston provides high quality and stable damping force characteristics.

オーバーホール可能

Inverted Type Damper for Strut Type

Firm rigidity against stress has been achieved. It works to the advantage of various performances when driving, and provides excellent handling and ride comfort.

PNE Coating

Prevents sticking due to rust, which is the bottleneck of full-length adjustable dampers. Also, the smooth surface reduces the force required for vehicle height adjustment.

Pillow Upper Mount

The genuine rubber upper eliminates unnecessary movement, making more precise and sharper handling.

“KODAWARI” of Exterior: Chamfered Upper Mounts

The aluminum upper mount has been chamfered by machining to evolve the beauty of the product. The machining process was increased to improve the feel and appearance of the product.

“KODAWARI” of Exterior: Laser Marking

The logo expresses a sense of luxury through the delicate characters created by laser marking, which cannot be expressed by pad printing.
