Description

GT-R35 HKS Intercooler Piping + SQV Kit 13002-AN003

Code No. 13002-AN004

Feature

SQV4 is added to the Piping Kit (P/N 13002-AN003).
Replacing the factory rubber hose with the aluminum pipes included in this kit improves durability under high boost pressure.
Pipe diameter was enlarged to 65mm from 60mm. It supports high power performance.
Provided purple silicone hoses have HKS logo on.

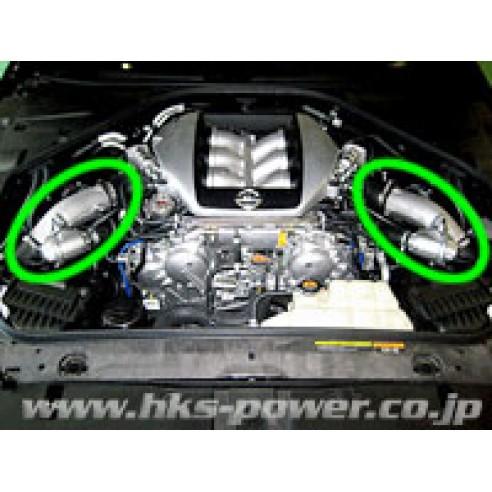

Buff polished aluminum pipes improved the appearance in the engine compartment.
This kit is included in the GT570 and GT600 kits.

Component

Inlet Pipe x 2 Outlet Pipe x 4 Silicone Hose x 10 SQV4 Kit x 1
(Hardware necessary to install this kit is included.)

Vehicle	Model	Engine	Model Year	Type	Number of pipes					Code No.	Price	Remarks
Vehicle	Model	Engine	Model Year	Type	Suction pipe	In pipe	Out pipe	Recirculation pipe	Super power flow	Code No.	Price	Remarks
GT-R	R35	VR38DETT	07/12-	IC		2	4			13002-AN004		Buff finish, SQV4 included

HKS PIPNG KIT for Durability Increase and Consistent Boost Pressure under High Boost Condition.

Stock plastic or rubber intercooler pipes can expand or crack under high boost levels. In addition to this, stock pipes have many bends which in some places are very tight radius which causes much resistance and pressure drop. HKS Piping kits are made of aluminum for increased durability and safety. The pipes have been redesigned to decrease the number of bends and to increase bend radius to minimize pressure loss and flow resistance.

Aluminum Pipes increase durability and safety.: Higher durability than the stock plastic pipes and increased safety can prevent possible damage to the pipe.
Aluminum Pipes improve engine response.: Highly durable aluminum pipes prevent pipes’ deforming under high boost pressure and intake air expansion and compression so the engine response can be improved.
Buff, Alumite, and Plating Finished Pipes improve engine compartment appearance.: Buff, Alumite, and plating finished aluminum pipes can make the engine compartment appearance more attractive.
Straight Layout and Appropriate Pipes’ Radius minimize pressure loss.: The pipes have been redesigned to decrease the number of bends and to increase bend radius to minimize pressure loss and flow resistance.
High Pressure Resistant Hoses improves intercooler’s performance.: Installing high pressure resistance hoses to joint parts can protect the pipes from heat and pressure, so full performance of the intercooler can be brought out.
By having almost same layout as the stock layout, installation procedure is very simple.: HKS Piping Kit can be installed as the same layout of the stock piping. So, no complicated installation procedure is required.

HKS PIPING KIT SERIES

Special Full Piping Kit

A special kit made for GT-R models. GT-R have front mount intercooler as stock and with this kit, both performance and appearance will improve.

Intercooler Piping Kit

Piping kit which replaces the pipes from the turbocharger to intercooler and the intercooler to inlet manifold. A convenient kit which allows the replacement of boost pipes which can frequently pop off in higher boost use and is recommended for tuning where the stock intercooler is still used.

Suction Piping Kit

Piping kit which replaces the stock pipes between the air cleaner and turbocharger. Stock suction pipes can often become compressed or crushed. These aluminum pipe kits prevent this to increase intake air flow efficiency.
