Description

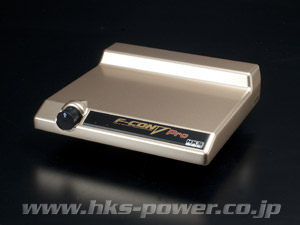

HKS FCON V Pro v3.4 + power writer 42012-AK007
ECU only requires harness and mapping by Power Writer dealer
- Hardware and software for F-CON V Pro has been upgraded to version 3.4.
- Fuel Injector control is available up to 8 injectors. This enables setting of up to 8- cylinder engine with sequential injection system or 4-cylinder engines with twin injection system.
- In addition to independent ignition control for up to 8-cylinders, rev limit control by the ignition cut-off is possible (only for race use). With this function, the boost can be maintained to the full level even while stopped before a drag racing launch.
- An air fuel meter can be connected directly for use with closed loop mapping and data logging functions. User-friendliness has been taken into account.
FUNCTION
High level fuel & ignition controls based on full signal input functions and other controls that are connected with auxiliary outputs by option output function are available.
- Airflow
- Throttle
- Accelerator position
- Intake Air Pressure
- Water Temperature
- Intake Air Temperature
- Exhaust Gas Temperature
- Fuel Temperature
- Oil Temperature
- Fuel Pressure
- Oil Pressure
- Atmospheric Air Pressure
- External A/F
- External Knocking
- O2
- Fuel Volume Correction
- Ignition Volume Correction
- Fuel Sub-correction Selection
- Ignition Sub-correction Selection
- Ignition Cut Rev Correction
and more.
OPTION OUTPUT FUNCTION
To perform a hard level tuning from boost-up tuning, with this version of F-Con V Pro, data edit in real time that is not available by flash rewriting is possible, and setting workability is high. Also, driving data can be recorded using a log function.
- Electric Fan Relay
- Fuel Pump Relay
- NOS Relay
- A/C Relay
- Main Relay
- IC Spray
- Idle Control
- Log Status
- Anti-lag Status
- Ignition Cut (Start) Status
- Error Status
- Communication Status
- Power Source Status
- Boost Control
- Warning Rpm
- Warning A/F
- Warning Knocking
- Warning Water Temperature
- Warning Oil Temperature
- Warning Exhaust Gas Temperature
- Warning Other Pressure
- Warning Intake Air Pressure
- Warning Fuel Pressure
- Warning Oil Pressure
and more.
PRODUCT SIZE
W150 × D140 × H18（H32：The highest point on the coupler’s side.
