GC8 HKS HKS Oil Cooler Kit – Type S

▲S-TYPE OIL COOLER KIT for IMPREZA WR X STi GDB (F)

■Features

• Oil Cooler Core mounts in left fender to avoid affecting the radiator.
• Included Aluminum Air Duct guides air directly into oil cooler core.
• When used in combination with the factory water-cooled oil cooler, peak oil temperature maintains a low and stable temperature.
• Core size W200mm x H200mm x T32mm 12row (stock oil cooler is used simultaneously)
• Hose size 10AN

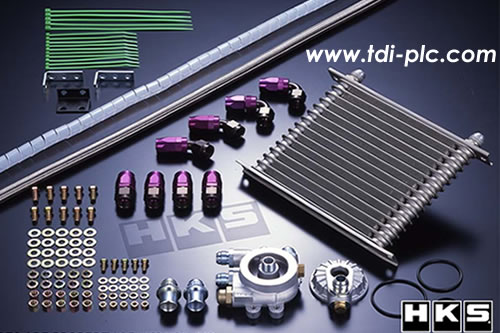

• Parts List : Oil Cooler Core, Oil Cooler Hose (10AN) x 2, S-TYPE Sandwich Plate, Air Guide (IN), Stay, Other parts

■Remarks

• Modification of Air Guide is required when used with HKS Front Mount Intercooler (13001-AF005).
• Not Compatible with STI SPEC C model.
• Fog Lamps cannot be installed with Oil Cooler.
• Washer Tank for Rear Window and Intercooler Spray must be removed (oil cooler core mounts in same location. If the Washer Tank and Intercooler Spray are required, use Kangaroo type.)
• Oil Temperature Meter and Oil Pressure will not mount to the Sandwich Plate.
• Caution: Oil filter will be lowered to same height as oil sump.
