Life Racing D8 Basic Dash

£2,844.00

SKU: SKU-20234-1-4 Categories: , , Tags: , , ,

Description

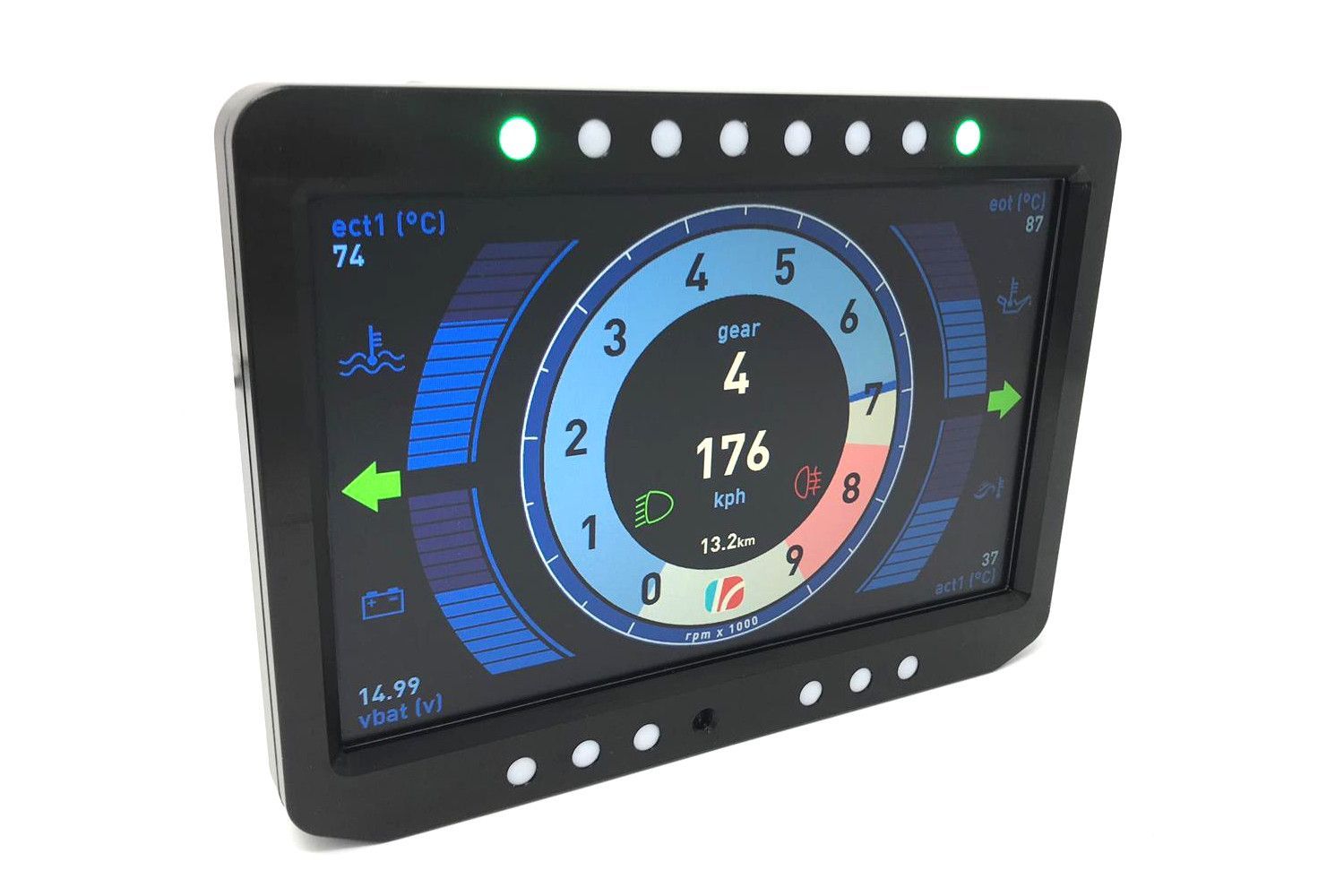

Life Racing D8 Basic Dash

The D8 large format motorsport dash is a fully configurable high-resolution 8″ display with two ethernet port and two CAN 2.0b. User configurable inputs and outputs as well as math’s functions and fully user configurable shift and warning light operation.

Processing
Powerful RISC CPU for advanced strategy and user-definable maths channel execution
Display
High resolution large 8″ WVGA ultra bright non-reflective screen for easy viewing even in direct sunlight with intelligent auto dimming for low light or night time operation
Inputs
10 user configurable general purpose analogue sensor inputs
6 user configurable switch inputs
2 Digital Frequency Inputs
Outputs
4 user configurable low-side outputs
Interfaces
2 Gigabit full duplex Ethernet for configuration and data download
Two CAN 2.0B interfaces for communication with other controllers or logging systems
RS232 serial interface for communication with other controllers or logging systems
USB 2.0 for bulk data storage on USB stick
Memory
Unlimited USB logging memory
Ultrafast download via Ethernet
Time/Date stamped data via real-time clock
Power Supply
6V to 80V input voltage range with reverse polarity protection
1 regulated 5V sensor supply output with individual short circuit protection
1 protected sensor ground connection
Physical
55Way Autosport connector
CNC machined, sealed IP67, black anodized aluminium case
Class-leading slim profile for flat panel mounting
