Mitsubishi Evo X Syvecs ECU Plug and Play – MT and SST
Please note that you original ECU must be sent to us for conversion.

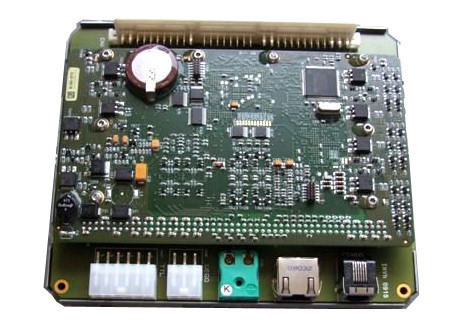

The Mitsubishi Evo X Syvecs ECU Plug and Play is for customers who wish to have all the advantages that the Syvecs Range offers but housed inside of the standard case for ease of fitment and not require any parts of the loom to be modified.
Please note that your original ECU has to be sent to us for processing.
Technical specification is identical to S6GP except connector is the oem for model and year of car specified and no case is supplied.
The S6-I ECU offers an extremely high level of precise engine management control. The triple processor unit uses a high speed RISC processor for code execution and an additional large FPGA for high speed engine position tracking, allowing the scheduling of code to be independent of signal patterns, increasing flexibility, efficiency and accuracy under transient conditions. This powerful combination also allows advanced control algorithms but yet easy to map for the end user still using our SCal software and S6 Firmware.
Designed to cater for PnP kits where clients need only the I/O of the S6GP but also need the programmable CAN Bus and Drive-By-Wire support offered by the S6Plus.
Using the same 3 x AMP Superseal connectors, the S6-i also has the same pinout for its I/O as the S6plus ECU. This means that users can easily upgrade to an S6Plus at a later date if more inputs and outputs are needed without having to change the loom.
The Third Processor present is available for in the future users to write their own code in C for Full Vehicle Integration via Canbus and Build some custom strategies to handle some of the unique requirements which are now found in OEM Applications. Currently only Syvecs staff can do this but we are working on offering this out to all our dealers very soon!
Cased In A Sealed Aluminium Billet Unit With 3 x Waterproof Connectors Offering 94pins
16 x General Purpose Analogue Inputs:
4 x 5V/Bipolar, Sensor/Sync/Speed, Programmable Trigger Voltages
4 x 5V/Thermistor, Sensor/Sync/Speed, Fixed Trigger Voltages
4 x 5V Sensor Input
4 x Thermistor Sensor Input
1 x NTK Lambda Input
1 x K-Type Thermocouple Circuit
1 x Knock Input
18 x High/Low Side Driver Outputs:
2 x Half Bridge Outputs (Max 10 Amps)
16 x Low Side Injection/PWM Outputs (Max 10 Amps)
6 x TTL Ignition Driver
1 x Can 2.0B
1 x Rs232 Output
1 x Kline Output
100 Mhz Full Duplex Ethernet For Connection To PC For Programming And Data Download
1MB Battery Backed Internal Logging Memory, Onboard Laptop Logging and USB Logging to be supported in the near Future for near unlimited logging of certain parameters
Dimensions : 185 X 145 X 55 mm
