Porsche 996 Evo 2 Competition Wagner Intercooler
Porsche 996 Evo 2 Competition Wagner Intercooler. The Performance Charge Air Cooler Upgrade Kit for Porsche 911 Turbo (S) 996:
Porsche 996 911Turbo 309KW/420PS (2000-2006)
Porsche 996 911Turbo S 331KW/450PS (2004-2006)
Intercoolers are a critical component to any turbocharger installation! The cooler the temperature of the intake air – the denser it is – the more oxygen it carries – the more performance it will give, so it’s very important to have maximum adiabatic efficiency!
However, big is not always better because we must also consider air-flow efficiency. The bigger the intercooler core – the more restriction to airflow it will have – giving a greater pressure drop – leading to lower boost pressure = less performance!
So, it is crucial to have adequate intercooler core volume to dissipate the heat, and with flow-bench/CFD designed flow path to minimise pressure drop.
The EVO 2 high-performance charge air coolers have the following mains dimensions (2 x [330mm x 222mm x 145mm] = 21.244cm3) and thus offer 77% more charge air volume compared to the original charge air coolers.
The Competition high-performance network offers very good cooling properties. The weight of the charge air cooler is 2x 6.7kg. This unique charge air cooler kit consists of CAD-developed free-form aluminium cast end boxes for the best possible internal airflow and a compressive strength of up to 6 bar (tested). A suitable carbon air flow to ensure an optimal flow of the charge air cooler.
As well as additional silicone hoses with enlarged cross-section. Furthermore, all our charge air coolers have an anti-corrosion coating with thermal conductive properties. All this guarantees optimal cooling with a significant increase in performance.

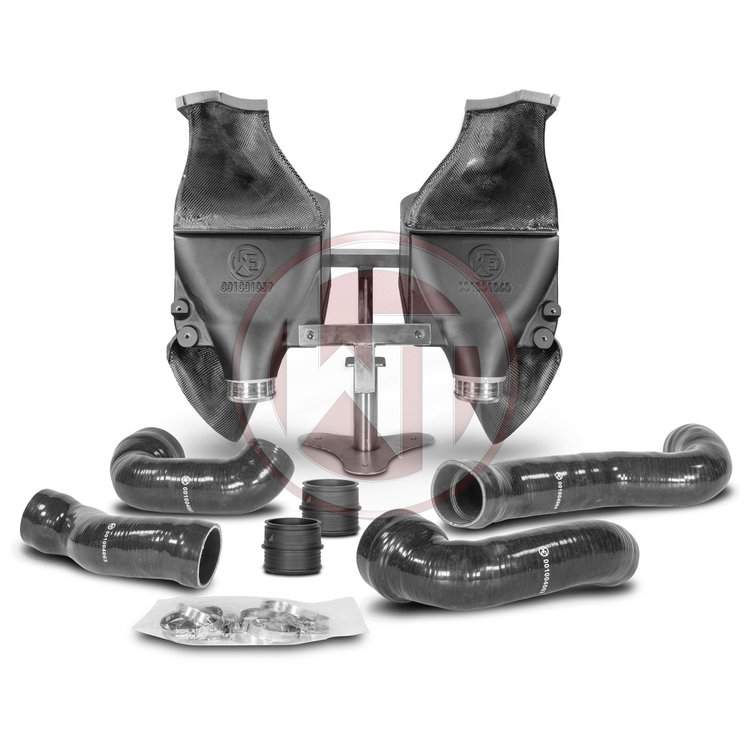

You will receive a fully ready-to-install kit, easy to replace with standard charge air coolers – including new carbon air ducts, silicone hoses and aluminium adapters. All our products are subject to continuous qualitative monitoring. Suitable for racing. 70mm inlet and outlet.
