Description
GT-R RB26 HKS Full Turbine Kit 14020-AN013
SPECIAL FULL TURBINE KIT for NISSAN SKYLINE GT-R (32/33 and 34)
■Concept and Features

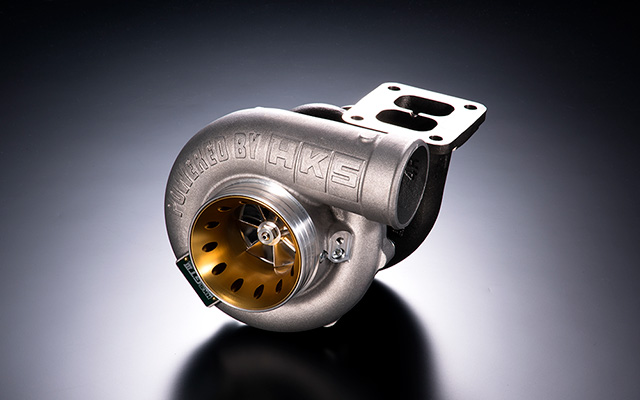

HKS provides easy solution of single turbine set up kit for GTIII-4R turbo.
■Kit Include
HKS φ42.7 stainless Exhaust Manifold, HKS GTII Wastegate(φ60), Wastegate return pipe, oil inlet and outlet pipe, flange, gasket, bolts, and nuts, etc.
【Variable Ported Shroud】
※Ported shroud functions depending on the bolt’s position.
※When surge occurs due to the vehicle specification,ported shroud is able to prevent surging.
【Features】
- A successor model of TO4Z. Compact in size, but withstandable over 700PS.
- Highly reliable MHI high performance CHRA & highly durable aluminum forged impeller are well-balanced.
- Ported shroud function is selectable using an adapter.
Replacing the position of the bolt securing ported shroud is able to keep the intake air path to reduce surging. - Impeller wheel rotation sensor compatible. （The sensor will be available separately.）
Easy replacement with TO4Z series turbine and the turbo kit using TO4Z. (Oil inlet / outlet are designed for GTIII-4R).
* Water cooling line is not available.
【Engine Output & Boost】
【Note】
- The graph above shows the result of in-house testing.
The actual results may vary depending on each vehicle’s specification(s).
| Vehicle | Model | Engine | Model Year | Type | Flange Size | Wastegate Type | Code No. | Manual | Remarks |
|---|---|---|---|---|---|---|---|---|---|
| SKYLINE GT-R | BNR34 | RB26DETT | 99/01 -02/08 | SPECIAL SET UP KIT + GTIII-4R | T4 | GTII φ60 | 14020-AN013 | Includes HKS GTIII-4R turbocharger. This kit may require modification or additional fabrication of parts such as intake pipes. |
