Description

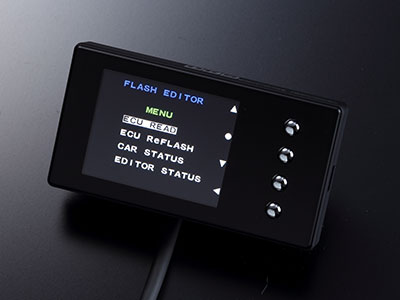

S660 HKS Flash Editor
【FLASH EDITOR】
HKS’ ECU ReFlash tool is available for tuning beginners and professionals.
Flash Editor is a setting tool for ECU reflashes via OBD II connection.
- ECU reflashing via the onboard diagnostics port (OBD II) is made possible.
- Stock data can be read and written.
- Can save stock ECU data and 3 other custom data files.
- HKS produced data (Phase 1, Phase 2) is preinstalled.
- Data can be edited by F-CON dealer with Power Writer.
- 1 Flash Editor is used per vehicle tuned.
* Data are prepared based on the JDM vehicle.
Data for Standard Unit and Power Writer Shops
| Data Available | Standard Unit (Formatting tool) | PowerWriter Shops | ||
|---|---|---|---|---|
| NA | S/C | NA | S/C | |
| NORMAL | ● | × | ● | × |
| PHASE1 | ● | × | ● | × |
| PHASE2 | ● | × | ● | × |
| HKS S/C DATA1 | × | ● | × | ● |
| HKS S/C DATA2 | × | ● | × | ● |
| Power Writer | × | × | ● | ● |
| Data Available | Standard Unit | PowerWriter Shops |
|---|---|---|
| NORMAL | ● | ● |
| PHASE1 | ● | ● |
| PHASE2 | ● | ● |
| Power Writer | × | ● |
* Some vehicles can only be installed HKS S/C DATA1
Main Functions
- ECU Read
Read ECU data and store via OBD II connection. - Create and Save Custom Data
Create and save custom data based on saved stock ECU data. - Write to ECU
Write to ECU. write stock or custom data to ECU. - Vehicle Information Display
Display vehicle information via OBD II connection. - USB Connection
USB connection for connection with Power Writer. (Only available for PowerWriter shops) - Data Protection
Each Flash Editor is restricted to 1 vehicle and data are protected.
Main Features
Connection to a PC is not required for ECU Reflash
- Vehicle data is preset; FLASH EDITOR can practice ECU reflash by itself.
- Custom data can be reverted to the stock data.
- 2 different preset custom data are available.
- Data are protected to prevent data from being leaked by other tools.
High performance scalability /PowerWriter for FLASH EDITOR
- Vehicle specific custom data can be created.
- HKS’ authorized PowerWriter shops have special software.
- Special software is available for HKS PowerWriter shops.
- PowerWriter shops can provide precise settings to meet the user’s needs.
Compatible with F-CON iS / F-CON V Pro
- Select F-CON iS or V Pro suitable for the level of tuning.
- Flash Editor prevents the CEL from coming on while using the F-CON V Pro.
- Real-time map data edit is available by use with the F-CON.
Pre Data for the vehicles
HKS Vehicle Specific Custom Data Concept for SUBARU & MITSUBISHI
- Phase1: Speed limit cancellation + Drivability Improvement.
- Phase2: Boost pressure increase (Optimized maps.) There are some HKS parts required to install.
* If the parts specification is different from the HKS specification, resetting must be done at HKS PowerWriter shops.
HKS Vehicle Specific Custom Data Concept for HONDA
- Phase1, 2: Speed limit cancellation + Drivability Improvement.
- Phase2: Boost pressure increase (Optimized maps.) There are some HKS parts required to install.
* If the parts specification is different from the HKS specification, resetting must be done at HKS PowerWriter shops.
