ZC33S Swift HKS Intercooler Kit – 13001-AS002

£792.00

Description

ZC33S Swift HKS Intercooler Kit

Suzuki Swift ZC33S HKS Intercooler 13001-AS002

HKS has now released this Swift ZC33S Intercooler kit 13001-AS002 featuring an optimised R type core.

The Suzuki K14C turbo engine achieves 140ps with 1.4L displacement having an output that is very high in spite of its compact engine size.

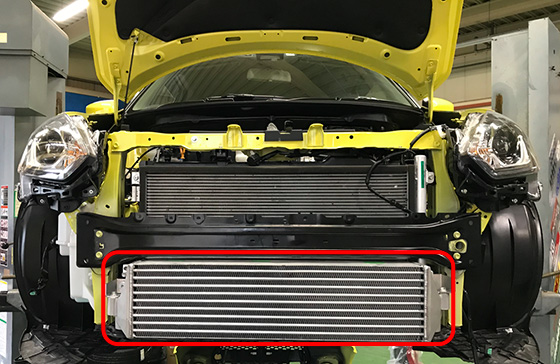

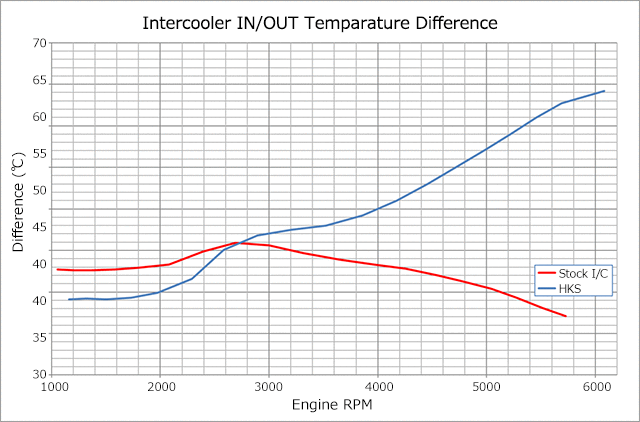

Due to packaging constraints, the stock intercooler is placed behind the front bumper. However, the temperature of the air from the outlet of the stock intercooler exceeds 60℃ which is obviously insufficient to maintain performance and engine reliability.

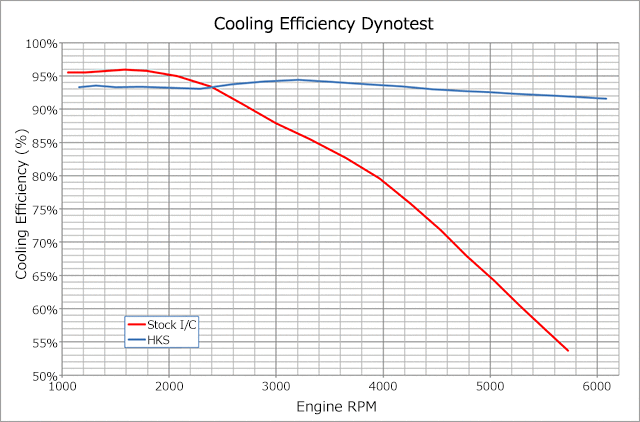

The new kit has an optimised design of tube and core size considering the K14C engine characteristics based on various test data and accumulated know-how from long years of R&D for the intercooler design assuming an upgrade of the turbo to GTIII-FX. The cooling performance improvement and pressure loss reduction are very impressive.

【R TYPE INTERCOOLER】

R TYPE is designed for circuit use; ideal to use with a stock replacement type turbine to wastegate type large size turbine. This intercooler derives better turbine performance regardless the engine rpm during driving on a straight track and acceleration after cornering.
The weight is approximately 25% lighter than a conventional product. (In-house comparison).

* R Type AL is aluminum polished piping type.

(1) Inner Fin (triangular straight type)

Triangular straight type for less pressure loss of air flow.

(2) Outer Fin (triangular louver type)

Like S TYPE, Triangular louver type for outer fin.



Should you need any further information on Suzuki ZC33S Swift HKS Intercooler Kit please go to https://www.hks-power.co.jp/en/product_db/cooling/db/21044
