SW20 FIGHTEX DA-G Coilovers

£2,610.00

Category:

Description

SW20 FIGHTEX DA-G Coilovers

Adjustable bottom brackets. The dual adjustable type allows quick and easy adjustment of the total length.

The total length of the damper can be tuned via the bottom bracket. The car ride height can be adjusted without touching the spring pre-load. Helping to find the delicate balance of traction and grip, through the various independent parameters of ride height, spring pre load and rebound stroke lengths.

SW20 MR2
well
Type FS
*Click the damper images below to see larger pictures.

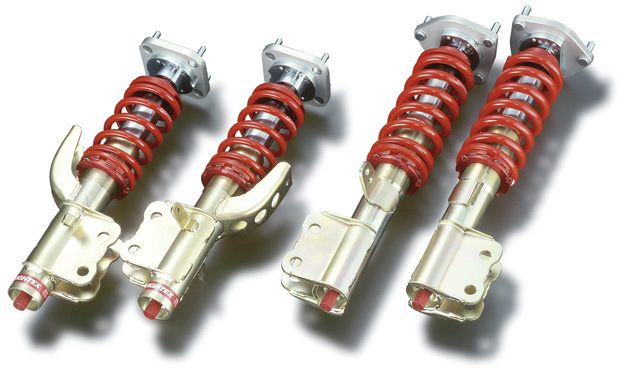

SW20 FIGHTEX Damper KIT
Type
TypeFS
TypeDATypeDA-G
TypeEX

TypeEX-G
fsfsfs
Kit contentsDamper + Spring + Pillow ball upper mount
ModelSW20 (MR2)
Part No.51500-SW2-00051520-SW2-00051530-SW2-00051540-SW2-00051550-SW2-000
Price (KIT)£2175
Price (damper only)
Price (damper + spring)
Supplied spring rate
[kgf/mm-mm]
Front7K-1607K-1606K-1607K-1606K-160
Rear11K-20011K-20010K-20011K-20010K-200
DesignF: Up side down design / R: Standard design
-Spring rate can be changed at the time of order with no additional cost (depending on the spring rate, damping force may need to be changed with extra cost).
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)
Damper KIT contents: Damper, main spring, pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount.
