Porsche 911 – 997 Syvecs S7 Plus ECU

£3,720.00

SKU: SKU-19571 Categories: ,

Description

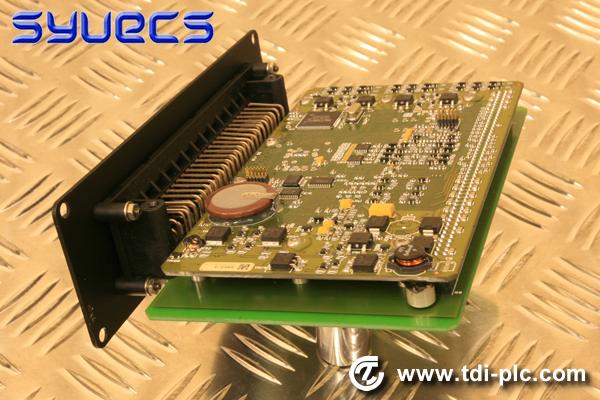

Porsche 911 – 997 Syvecs S7 Plus ECU

SySyvecs Engine Management System Porsche 911 – 997v ecs S911 Kit brings a new level of Engine Management control to the Porsche 996 and 997 range of cars. Offering complete control of the engine management system and gearbox torque control live. (Worlds First!)

By simpling pluging in the kit a whole new level of control is available offering the following and more!

Live Tuning of every aspect of the engine’s calibration, including signals sent to the TCM and 4WD
Increased tiptronic shift speeds with torque reduction via Fuel cut and retard. Far superior over the stock ecu Throttle angle adjustment
Adjustable Shift rpm with Speed lockout
Ability to select desired engine map, boost level, traction and launch control levels through steering wheel buttons or external 12 position switch. Indicated Map is shown on Boost level (See Media)
Fully adjustable Launch control with Anti-lag strategies and Ramp in Maps. 12 live switchable maps available
Fully adjustable Traction control system with Lategal G targeting. 12 live switchable maps available
Full Variable Valve Timing and lift control
Closed loop Dual Lambda Control
Fully adjustable closed loop boost control with launch level adjustments and trims for turbo speed, air charge, engine coolant temp, exhaust gas temperatures etc
Monitor and trimming of exhaust gas temperatures
Built in data logging of up to 8 hours, with data rates at up to 1000hz
Pit lane limiter strategies, great for building boost on a roll
Antitheft and valet modes
Super fast connection via RJ45 Ethernet port for live tuning anywhere in the world or even remotely if on track and connected to a wireless unit.
Configurable Engine Safety Trips on all important parameters like oil temperature, oil pressure, water temp and crankcase pressure.
Fuel pump control of both main, and sub pumps, as well as Relative fuel pressure monitoring and limiting in the event of fuel pressure dropping on boost.
4 different Pedal to Throttle Angle maps with multipliers for different parameters e.g. speed. Again adjustable via steering wheel buttons
Configurable individual cylinder closed loop knock control, to suit any cylinder modification with adjustments to frequency, windows for listening and gains for each cylinder. Ability to trigger full cylinder shutdown in severe knock conditions.
Ability to change torque levels or demand levels sent to 4wd unit and TCM ECU
Change torque reduction levels on shifts. Essential for very high power tiptronic versions where the maximum reduction available via the stock ECU is not enough to prevent damage to components
Ability to change Torque ramp in after launch
Change throttle blip requests to match your torque band. Especially useful on oversized turbo installations.
Run up to 7bar map sensors
Control high or low impendence injectors
Control up to 12 injectors for high power installations where staged injection may be required
Change injector dead times based on voltage levels for proper control
Change injector end angle to ensure injection point is properly calibrated
Ability to fit any type of external sensor to monitor and trigger safety trips from anything from crank case pressure to damper position
Ability to use any size DBW throttle body e.g. Chevrolet LS7
Wet and Dry – Wet and Dry nitrous control with ability to drive solenoids directly and control n20 heaters via pressure monitoring
Ability to control any external vehicle features based on sensor inputs e.g. Adjustable rear wing linked to G force or exhaust control valves
Connect any race series dash or even one of our partners’ Touchscreen CANBUS adjustment /display units
View any input live with built in scope up to 1000hz
And much, much more!

For info on Porsche 911 – 997 Syvecs S7 Plus ECU Please go here

For info on our full range of goods and services please go here
