Description

3SGTE TODA 2.2 Stroker Kit

3SG SW20 MR2

Defric coating (Lubricous film) is applied to the piston skirt, for a reduction in friction and loads as well as improved durability.

3SG(SW20) Increased Capacity 2200 KIT Low Comp (with use of std connecting-rods)
Engine Type	3SG (SW20)
Part No.	13000-3SG-T01
Price (set)	£3250
Bore×Stroke	ø87.00×93mm
Displacement	2211cc
Crown Volume *1	-8.0cc/-15.7cc
Projection Height *2	-1.3mm
Reference C/R *3	STD head GK t=1.2mmξ≈8.7:1 (ver.III-V) STD head GK t=1.5mmξ≈8.4:1 (ver.I, II)
1:Crown volume is measured “from the piston shoulder”/”from the deck of the block”. 2:Piston shoulder height is measured from the deck of the block. *3:The compression ratios given above are only to be taken as a guide, measurements are required. The opening in the oil pan baffle plate may need to be modified.

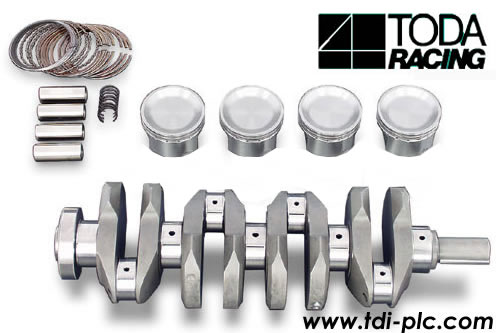

KIT Contents
1	TODA forged piston KIT ø87.00mm (2211cc)
2	Special crankshaft (Long stroke, High accuracy dynamic balanced)

For info on Toyota 3SGTE TODA 2.2 Stroker Kit please go here
