Description

S2000 Toda Racing 2.4 Stroker Kit

PLEASE CONFIRM PISTON SIZE AND COMPRESSION RATIO AT THE TIME OF ORDERING.

F20C/F22C S2000

Defric coating (Lubricous film) is applied to the piston skirt, for a reduction in friction and loads as well as improved durability.
Strengthened chrome molly I section connecting-rods are included.

F20C/F22C (S2000) Increased Capacity 2400KIT NA I Type High Comp
Engine Type	F20C/F22C 2400KIT-I (2378)	F20C/F22C 2400KIT-I (2405)
Part No.	13001-F20-400-I	13001-F20-401-I
Price (set)	£5800	£5800
Bore×Stroke	ø87.00×100mm	ø87.50×100mm
Displacement	2378cc	2405cc
Crown Volume *1	-0.56cc/5.38cc	-0.56cc/5.45cc
Projection Height	+1.0mm (from the deck of the block)	+1.0mm (from the deck of the block)
Reference C/R *2	Standard head GK t=0.6mmξ≈12.12:1	Standard head GK t=0.6mmξ≈12.27:1
Based on standard piston pin diameter. 1:Crown volume is measured “from the piston shoulder”/”from the deck of the block”. 2:The compression ratio given above are only to be taken as a guide, measurements are required. Cylinder head combustion chamber may need a boring modification to gain sufficient clearance. Cylinder skirt of the block may need a modification to gain sufficient clearance.

F20C/F22C (S2000) Increased Capacity 2400KIT NA I Type Ultra High Comp
Engine Type	F20C/F22C 2400KIT-IH (2378)	F20C/F22C 2400KIT-IH (2405)
Part No.	13001-F20-400-IH	13001-F20-401-IH
Price (set)	£5800	£5800
Bore×Stroke	ø87.00×100mm	ø87.50×100mm
Displacement	2378cc	2405cc
Crown Volume *1	3.3cc/9.2cc	3.3cc/9.3cc
Projection Height	+1.0mm (from the deck of the block)	+1.0mm (from the deck of the block)
Reference C/R *2	Standard head GK t=0.6mmξ≈13.0:1	Standard head GK t=0.6mmξ≈13.2:1
Based on standard piston pin diameter. 1:Crown volume is measured “from the piston shoulder”/”from the deck of the block”. 2:The compression ratio given above are only to be taken as a guide, measurements are required. Cylinder head combustion chamber may need a boring modification to gain sufficient clearance. Cylinder skirt of the block may need a modification to gain sufficient clearance.

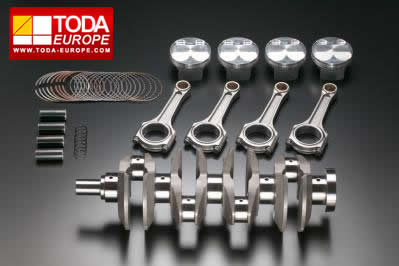

KIT Contents
1	TODA forged piston KIT ø87.0mm / ø87.50mm (2378cc/2405cc)
2	Special billet crankshaft (Long stroke, High accuracy dynamic balanced) (→Here is Special billet crankshaft)
3	I section chrome molly connecting-rods (Fully floating with Bush & balanced) (→Here is I section connecting-rods)
