Description

3SG Toda Racing Pistons – High Comp

PLEASE STATE REQUIRED PISTON SIZE AT THE TIME OF ORDERING.

3SG SXE10 ALTEZZA

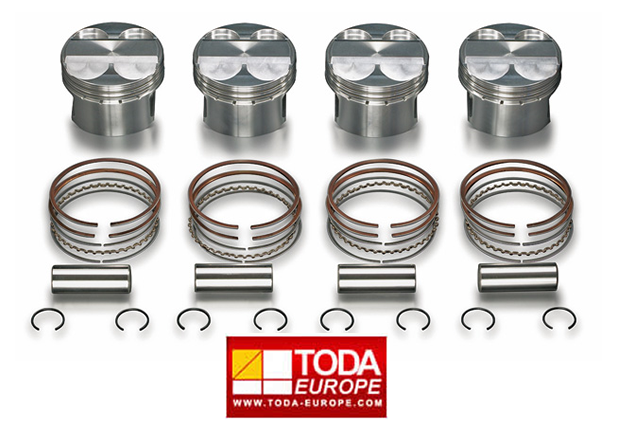

3SG(SXE10) Hi Comp Forged Piston KIT
Engine Type	3SG (SXE10)	3SG (SXE10)
Part No.	13010-3SG-200	13020-3SG-200
Price (set)	£795	£795
Bore	ø86.00mm	ø87.00mm
Displacement	1998cc	2045cc
Crown Volume *1	1.5cc/-6.1cc	1.5cc/-6.2cc
Projection Height *2	-1.3mm	-1.3mm
Reference C/R *3	TODA head GK t=0.5mmξ≈12.6:1	TODA head GK t=0.5mmξ≈12.8:1
Option	*TODA’s I section connecting rods are recommended.
1:Crown volume is measured “from the piston shoulder”/”from the deck of the block”. 2:Piston shoulder height is measured from the deck of the block. *3:The compression ratios given above are only to be taken as a guide, measurements are required.

For info on Toyota 3SG Toda Racing Pistons – High Comp please go here
