HKS Flash Editor Tuning

June 11, 2020 Mark



HKS Flash Editor Tuning. As you may or may not know, we were the 1st HKS dealer in Europe dating back to the late 1980’s  so have considerable experience with Japanese cars, HSK products and their FCON engine management systems.

HKS has launched a new tuning solution that enables the stock ECU to be remapped. The HKS Flash Editor connects with the car via it’s OBD2 diagnostics port to read, edit and upload the tuning files. It comes with 2 pre-set maps by HKS which are normally “safe” ie; rich and retarded so ideally the Flash Editor should be custom mapped to optimise the engine performance and safety.

We have the software and expertise to do this!

The Flash Editor is available for the following:

Toyota:

  • GT86: Compatible up to the applied F model(2017/10～2018/04). Not compatible with the applied G model (18/05-). To use with Fuel Upgrade Kit (14007-AT001), settings according to the vehicle specifications must be performed. For initial setting, Windows PC(7, 8, 8.1, 10）and USB cable (A-micro B) are required.

Honda:

  • CR-Z: Need Windows computer(7, 8, 8.1) and USB cable(A to mini B) for initial setting.
  • N-ONE: Need Windows computer(7, 8, 8.1) and USB cable(A to mini B) for initial setting.
  • S2000 – AP2-F22: Need Windows computer(7, 8, 8.1) and USB cable(A to mini B) for initial setting.

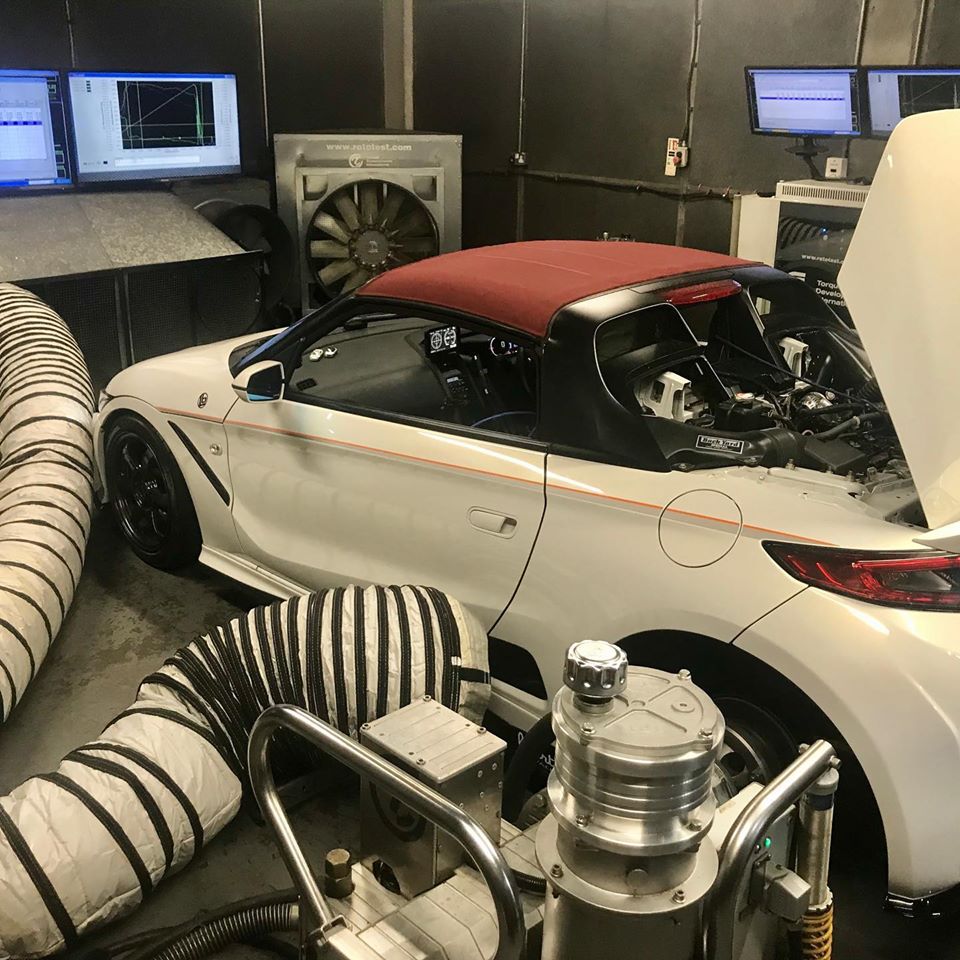

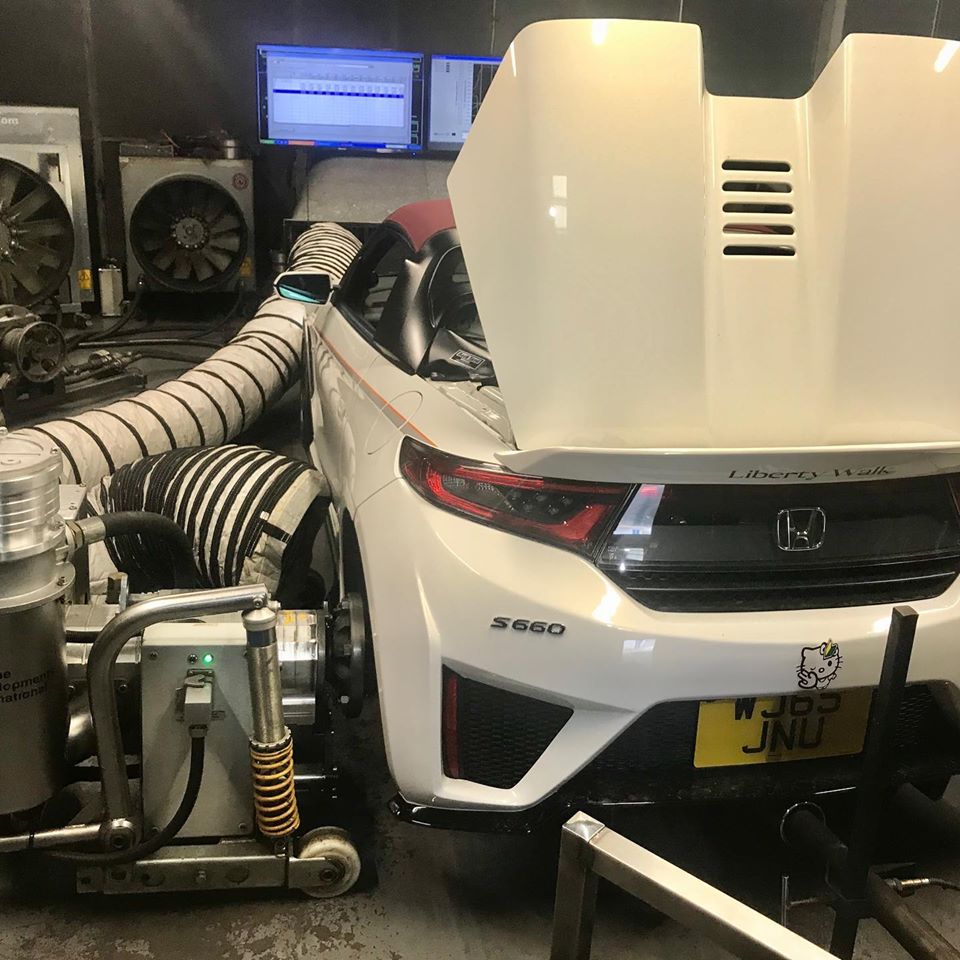

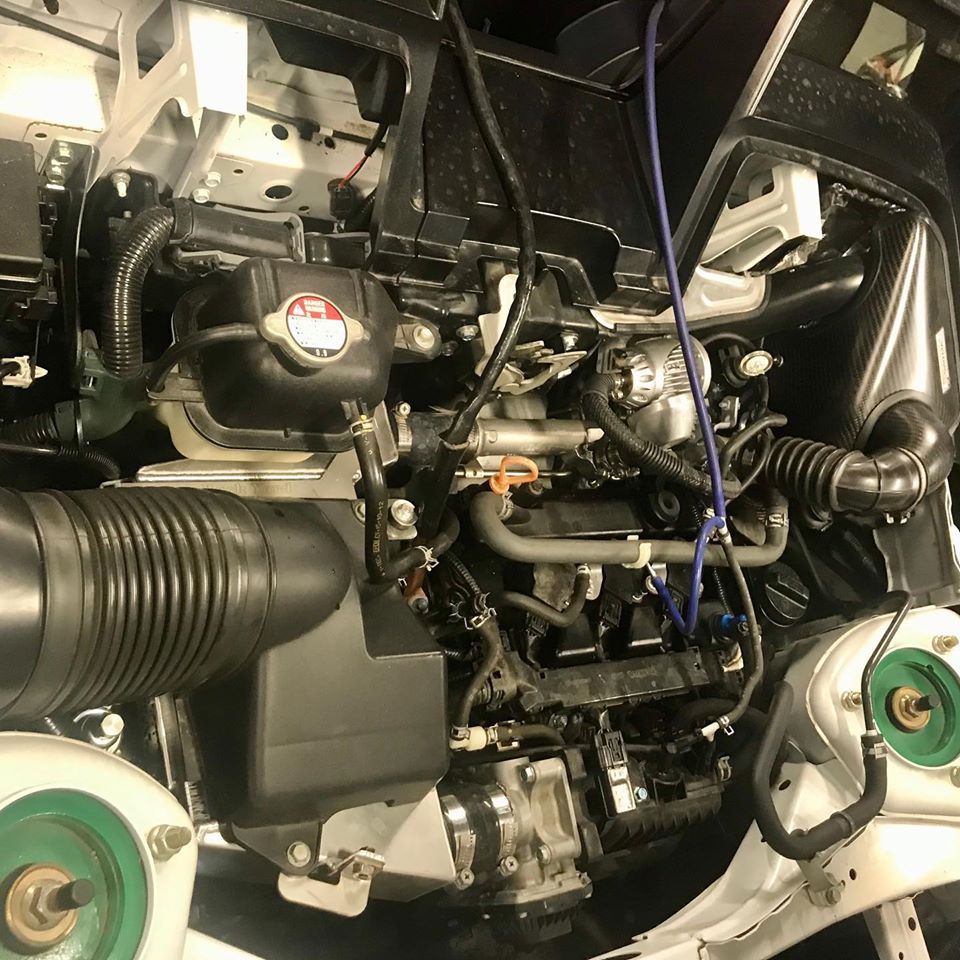

  • S660: Need Windows computer(7, 8, 8.1) and USB cable(A to mini B) for initial setting.
  • Civic FK7: Compatible with both 6MT and CVT
    Need Windows computer(7, 8, 8.1, 10) and USB cable(A to mini B) for initial setting.

Subaru:

  • Impreza BRZ: Compatible up to the applied F model(2017/08～2018/06). Not compatible with the applied G model (18/07-). To use with Fuel Upgrade Kit (14007-AT001), settings according to the vehicle specifications must be performed. For initial setting, Windows PC(7, 8, 8.1, 10）and USB cable (A-micro B) are required.
  • Impreza WRX S4 VAG: Need Windows computer(7, 8, 8.1, 10) and USB cable(A to micro B) for initial setting.
  • Impreza GVF
  • Impreza GVB
  • Impreza GRF
  • Impreza GRB
  • Legacy BM9
  • Legacy BR9
  • Lavorg VMG

Mitsubishi:

  • Evo X: Reflashing for final edition model is available only by Power Writer shops.

Mazda:

  • CX-5: Need Windows computer(7, 8, 8.1, 10) and USB cable(A to micro B) for initial setting
  • Atenza; Need Windows computer(7, 8, 8.1, 10) and USB cable(A to micro B) for initial setting.
  • MX5 – ND5C: Need Windows computer(7, 8, 8.1, 10) and USB cable(A to micro B) for initial setting.
