Description

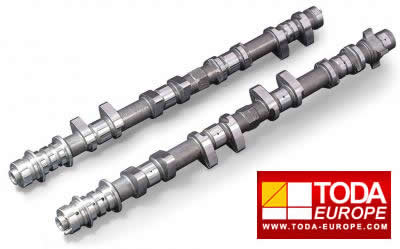

3SG SXE10 Toda Racing Camshafts

PLEASE SPECIFY THE REQUIRED CAMSHAFT/S AT THE TIME OF ORDERING.

3SG SXE10 ALTEZZA

3SG (SXE10) High Power Profile Camshaft
Part No.	Angle	Lift	Price	Remarks
14111-XE1-001	268 IN	12.0	£430	Standard springs can be used. For best effect, use TODA Up Rated Valve Springs. Can idle with STD ECU. (Not the best.)
14121-XE1-001	264 EX	11.0	£430
♦14111-XE1-020	290 IN	13.3	£430	TODA Up Rated Valve Springs required & TODA Cam Pulleys recommended. In order to use with VVT system, a programmable ECU will be required to control VVT function range. VVT oil line is provided to camshafts.
♦14111-XE1-021	295 IN	13.3	£430
♦14111-XE1-022	300 IN	13.3	£430
♦14121-XE1-010	280 EX	13.0	£430
♦14121-XE1-011	285 EX	13.0	£430
♦14121-XE1-021	295 EX	13.0	£430

♦There is not enough clearance between valve spring retainer and stem seal. The bottom of the valve spring retainers needs to be cut off 1mm.
♦Cylinder head modification of cam lobes recess is required.
♦A modification may be required to #1 cam cap since there is not enough clearance between the cam cap and cam lobs.
*Designed for 33mm valve lifter (bucket).
*Cannot be used for AT engine.
