3SG Toda Stroker Kit – High Comp – Excluding Rods

£2,665.00

Description

3SG Toda Stroker Kit – High Comp – Excluding Rods (available separately).

PLEASE STATE REQUIRED PISTON SIZE AT THE TIME OF ORDERING.

3SG SXE10 ALTEZZA
Click here for
“Central Oil Feed” information.
Defric coating (Lubricous film) is applied to the piston skirt, for a reduction in friction and loads as well as improved durability.

3SG(SXE10) Increased Capacity 2200 KIT I Type High Comp
Engine Type3SG (SXE10)
*TODA’s option type connecting-rods recommended.
OptionI Section Strengthened connecting-rodsI Section Strengthened connecting-rods
Part No.13000-3SG-20013001-3SG-200-I13000-3SG-20113001-3SG-201-I
Price (set)£2665£2665
Bore×Strokeø86.00×93mmø87.00×93mm
Displacement2161cc2211cc
Crown Volume *1-3.1cc/-9.5cc-3.1cc/-9.6cc
Projection Height *2-1.1mm-1.1mm
Reference C/R *3TODA head GK t=0.5mmξ≈12.6:1TODA head GK t=0.5mmξ≈12.8:1
*1:Crown volume is measured “from the piston shoulder”/”from the deck of the block”.
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required.
The opening in the oil pan baffle plate may need to be modified.
In use of center oil spray, connecting rod bearings may need a oil feed hole drilling modification depending on the type of bearings to use.

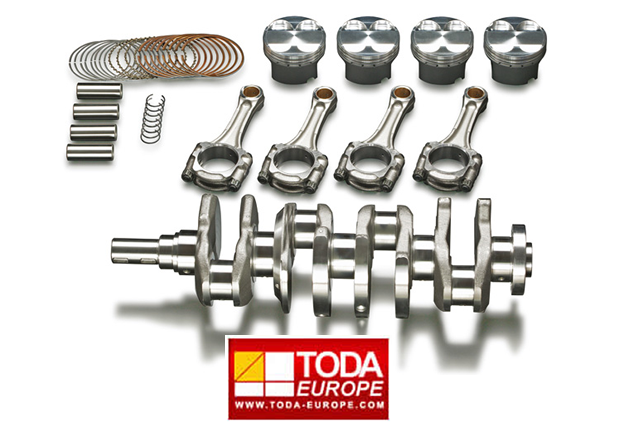

KIT Contents
1TODA forged piston KIT ø86.00mm/ø87.00mm (2161cc/2211cc)
2Special crankshaft (Long stroke, High accuracy dynamic balanced)
3I Section Strengthened Connecting-rods (Fully floating with bush & balanced)<option>

For info on Toyota 3SG Toda Stroker Kit – High Comp please go here

For info on our full range of goods and services please go here
