Description

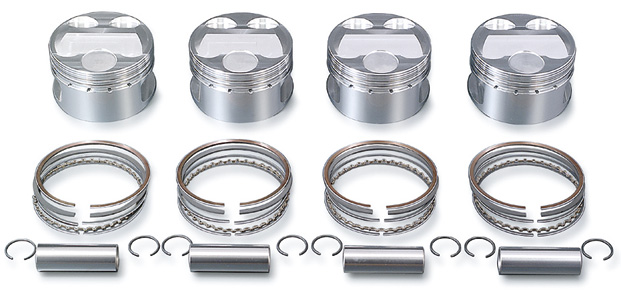

4AG 5 Valve Toda Forged Pistons
PLEASE STATE PISTON SIZE AND ENGINE TYPE AT THE TIME OF ORDERING.
| 4AG AE101 LEVIN, TRUENO |
 |
|
| 4AG (5 valve) High Comp Forged Piston KIT for AE101 | | Engine type | 4AG 5 Valve (for AE101) | | Part No. | 13010-101-000 | 13020-101-000 | 13040-101-000 | | Price (set) | £850 | £850 | £850 | | Bore | ø81.00mm | ø81.25mm | ø82.00mm | | Displacement | 1587cc | 1597cc | 1627cc | | Crown Volume *1 | 5.6cc/4.6cc | 5.6cc/4.6cc | 5.6cc/4.5cc | | Projection Height *2 | -0.2mm | -0.2mm | -0.2mm | | Reference C/R *3 | Standard head GKξ≈11.4:1
TODA head GK t=0.8mmξ≈12.0:1 | Standard head GKξ≈11.5:1
TODA head GK t=0.8mmξ≈12.1:1 | Standard head GKξ≈11.6:1
TODA head GK t=0.8mmξ≈12.3:1 | *1:Crown volume is measured “from the piston shoulder”/”from the deck of the block”.
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required. |
|
|
| 4AG AE111 LEVIN, TRUENO |
 |
|
| 4AG (5 valve) High Comp Forged Piston KIT for AE111 | | Engine type | 4AG 5 Valve (for AE111) | | Part No. |
13010-111-000 | 13020-111-000 | 13040-111-000 | | Price (set) | £850 | £850 | £850 | | Bore | ø81.00mm | ø81.25mm | ø82.00mm | | Displacement | 1587cc | 1597cc | 1627cc | | Crown Volume *1 | 8.4cc/7.4cc | 8.4cc/7.4cc | 8.4cc/7.3cc | | Projection Height *2 | -0.2mm | -0.2mm | -0.2mm | | Reference C/R *3 | Standard head GKξ≈11.6:1
TODA head GK t=0.8mmξ≈12.2:1 | Standard head GKξ≈11.7:1
TODA head GK t=0.8mmξ≈12.3:1 | Standard head GKξ≈11.8:1
TODA head GK t=0.8mmξ≈12.5:1 | *1:Crown volume is measured “from the piston shoulder”/”from the deck of the block”.
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required. |
|
|
