Audi RS3 8V EVO2 Wagner Intercooler

£1,240.00

Description

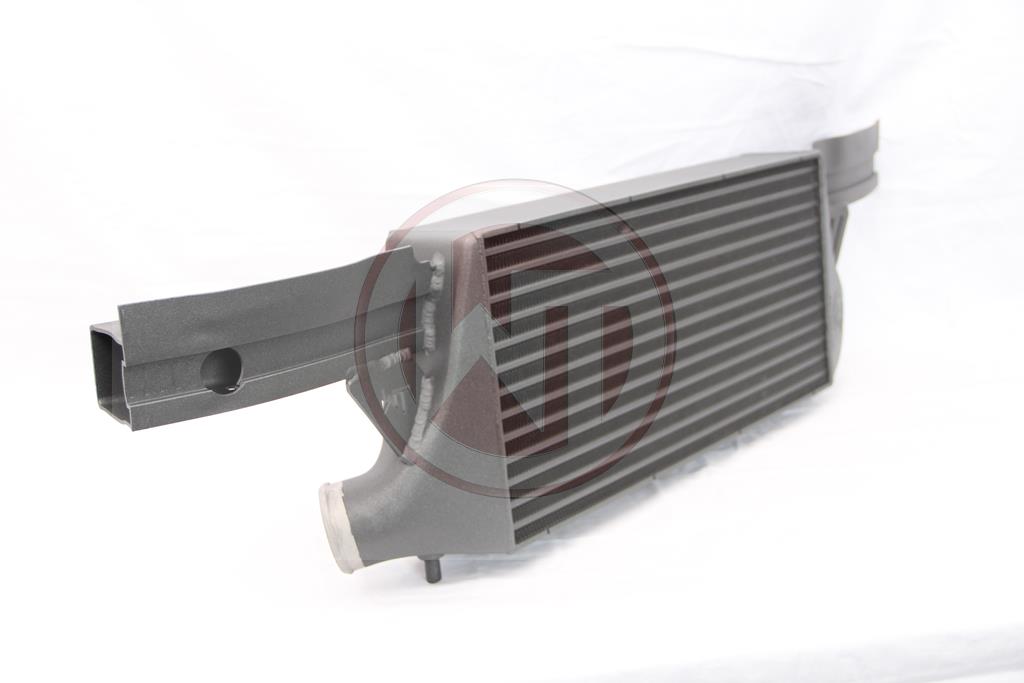

Audi RS3 8V EVO2 Wagner Intercooler

Competition Audi RS3 8V Wagner Intercooler Kit

Intercoolers are a critical component to any turbocharger installation! The cooler the temperature of the intake air – the denser it is – the more oxygen it carries – the more performance it will give, so it’s very important to have maximum adiabatic efficiency!

However, big is not always better because we must also consider air-flow efficiency. The bigger the intercooler core – the more restriction to airflow it will have – giving a greater pressure drop – leading to lower boost pressure = less performance!

So, it is crucial to have adequate intercooler core volume to dissipate the heat, and with flow-bench/CFD designed flow path to minimise pressure drop.

The high-performance performance network offers very good cooling properties. The weight of the charge air cooler is 2x 5.7kg. In CAD developed free-form end-series made of cast aluminium for the best possible internal air flow. Overall, these charge air coolers have less back pressure than the serial cooler.

EVO2 535mm x 260mm x 95mm 13,214 cm³ intercooler core compared to
EVO1 535mm x 160mm x 110mm 9.416 cm³ core and
OEM 535mm x 160mm x 80mm 6,848cm³ core
CAD / FEM optimized cast aluminum end tanks
OEM Mounting Points

In addition, all our charge air coolers have an anti-corrosion coating with thermal conductive properties. This guarantees optimal cooling with a significant increase in performance. Completely ready-to-install kit, easy to replace with standard charge air coolers – including silicone hoses and aluminium adapters. Up to 6 bar tested and pressure-stable. All our products are subject to continuous qualitative monitoring.
