Evo 7/8 HKS GT3-RS Sports Turbine

SPORTS TURBINE KIT for LANCER EVOLUTION VII-VIII[CT9A]

“GT III Turbine” is a new generation of turbo combining MHI brand CHRA with HKS original housings designed from the long term know-how HKS has accumulated over many years.

■Features

• Renowned high-efficiency MHI CHRA for the center cartridge
  Recent requirements towards fuel efficiency and emissions control have accelerated the development of turbo technology and this has been adapted for tuning. A complicated design of turbine blades prevent surging even at low airflow ranges.
• HKS Original Vehicle Specific Housing
  HKS designed housings that utilize the technology, experience, and know-how built up over many years of turbocharger innovation and the latest flow analysis. The combination of the ultimate turbine blades and optimal design housing enables the compressor to work more efficiently in a wide range and setting arrangement as desired.
• Restrictor for 4G63 Engine
  The 4G63 stock engine is able to achieve over 257kW(350ps); therefore, this kit is not designed to be installed to a stock fuel system vehicle specification. For those who wish to set the boost pressure to 95kPa or less, a restrictor designed exclusively for this kit is available as an optional part.

■Performance

■Test Vehicle

• Stock Engine
• Large Capacity I/J, Large Capacity Fuel Pump
• Super Turbo Muffler, Metal Catalyzer
• Intercooler Kit
• F-CON iS

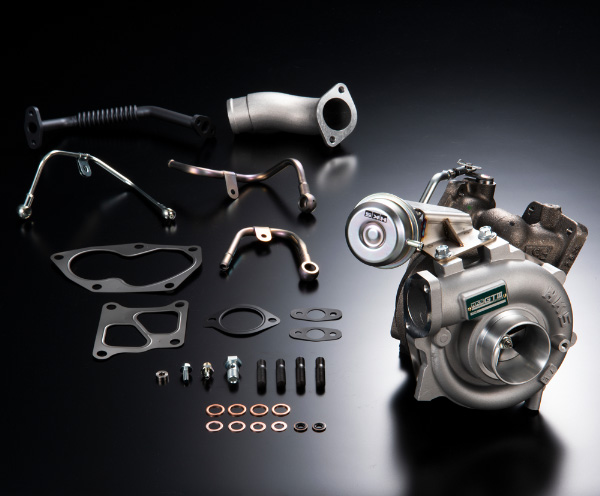

■Kit Parts

• GTIII-RS Turbocharger Assy
• Gasket, Bolt, etc.

■Note

• The shape of the part the turbo oil return pipe is connected to is different depending on the engine manufacture lot. Measure the clearance between the upper side of the oil pan and the center of the left side of the turbo oil return pipe installation bolt hole, and select a proper kit referring to the photos on the bottom.
  【Clearance from the upper side of the oil pan】

• Modification of factory parts is required.
• Upgrading the fuel and engine parts may be required depending on the vehicle specifications.
• The graph shows the results of in-house test. The actual results may vary depending on test condition, measurement instrument, vehicle’s individual characteristic, and/or specification.

●RESTRICTOR for GTIII-RS(4G63)

●CHRA for OVERHAUL

Vehicle	Model	Engine	Model Year	Type	Turbine Size	Boost Pressure	Code No.	Manual	Remarks
										LANCER EVOLUTION VII	CT9A	4G63	01/02 -02/12	GT III SPORTS TURBINE KIT	GTIII-RS	98.0kPa (1.0kgf/cm2)	11004-AM008
