Description
FA20 Toda 2.3 Stroker Kit – Low Comp for Forced Induction.
| FA20 TOYOTA 86/SUBARU BRZ |
 |
The increased displacement improves low-speed torque as well as the performance throughout the whole rpm range.
High-Comp spec with the compression ratio 0.7 higher than std (12.5:1)
Defric coating (Lubricous film) is applied to the piston skirt, for a reduction in friction and loads as well as improved durability.This product requires TODA Power Liner KIT and TODA Head Gasket.
 FA20 Power Liner KIT
 FA20 High Stopper Metal Head Gasket |
|
| FA20 Increased Capacity 2300 KIT | | Engine Type | FA20 (TOYOTA 86/SUBARU BRZ) | | Part No. | 13001-FA2-0R0-I | 13001-FA2-0R1-I | | Price (set) | £4785 | £4785 | | Bore×Stroke | ø89.20×90mm | ø89.70×90mm | | Displacement | 2250cc | 2275cc | | Crown Volume *1 | 0.90cc/-1.60cc | 0.86cc/-1.64cc | | Projection Height *2 | -0.5mm | | Reference C/R *3 | TODA head GK t=0.6mmξ≈13.2:1 | TODA head GK t=0.6mmξ≈13.3:1 | *1:Crown volume is measured “from the piston shoulder”/”from the deck of the block”.
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required. |
|
|
|

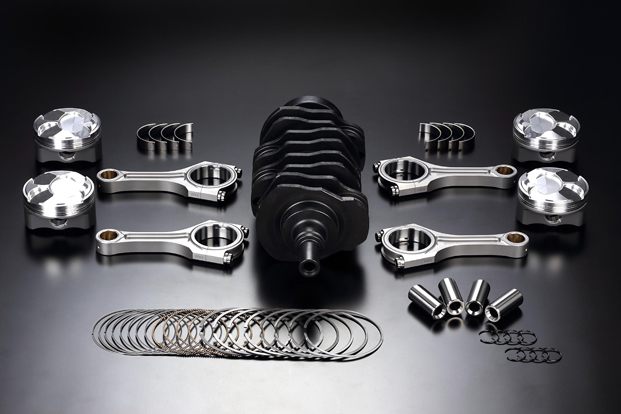

| KIT Contents | | 1 | TODA forged piston KIT ø89.20mm / ø89.70mm | | 2 | Special crankshaft (Long stroke, High accuracy dynamic balanced) | | 3 | I Section Strengthened Connecting-rods (Fully floating with bush & balanced) | | 4 | Connecting-rod bearings |
|
|
