Description
FD3S HKS Special Setup Kit 14020-AZ001
SPECIAL SET UP KIT for Mazda RX7 FD3S 14020 AZ001

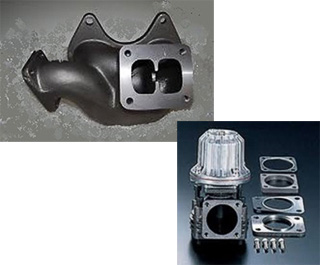

The casting manifold and wastegate from FD3S performance tuning standard HKS Full Turbine Kit are available again.
■Features
- Installation size is the same as the conventional to be compatible with the existing full turbine kit.
- This is not just a reproduction; the port shape of the exhaust manifold internal was significantly reviewed to improve the exhaust airflow to the wastegate. The exhaust pressure reduction stabilizes the boost pressure even using new GTIII turbines.
- Redesigning the casting material with the latest technology improves the high-temperature durability.
- The wastegate is an affordable and highly-reputed existing Special Wastegate.
- Using the pipes self-fabricated for the turbine increase the fun of the large-capacity turbine performance.
■Test Data（In-house Test）
【Test Vehicle】
E/G：13B-REW Bridge Port
GTIII-4R A/R1.00 (Proto Type)
New Casting Exhaust Manifold
SPL WASTEGATE
●GTIII-4R TURBINE
| Model | GTIII-4R | |
| Wastegate | External | |
| Code No. | 14001-AK033 | |
| Price | ||
| Horsepower (kW) | 368-537 | |
| Exhaust Housing | Inlet Flange | TO4 2port |
| Outlet Flange | Coupling 99.1 | |
| A/R | 0.81 | |
| Turbine Wheel | Outer Dia. (mm) | 74.0 |
| Compressor Wheel | Trim | 53 |
| Outer Dia. (mm) | 85.0 | |
| Compressor Housing | Inlet Dia. (mm) | φ100 |
| Outer Dia. (mm) | φ70 | |
| Vehicle | Model | Engine | Model Year | Boost Pressure | Flange Size | Wastegate Type | Code No. | Manual | Remarks |
|---|---|---|---|---|---|---|---|---|---|
| RX-7 | FD3S | 13B-REW | 96/12 -02/08 | – | T4 | Waste Gate | 14020-AZ001 |  | Exhaust manifold and wastegate are included. |
