EP3 Toda Racing Fightex DA Coilovers

Description

EP3 Toda Racing Fightex DA Coilovers

Adjustable bottom brackets. The dual adjustable type allows quick and easy adjustment of the total length.

The total length of the damper can be tuned via the bottom bracket. The car ride height can be adjusted without touching the spring pre-load. Helping to find the delicate balance of traction and grip, through the various independent parameters of ride height, spring pre load and rebound stroke lengths.

EP3 CIVIC TypeR

Type DA

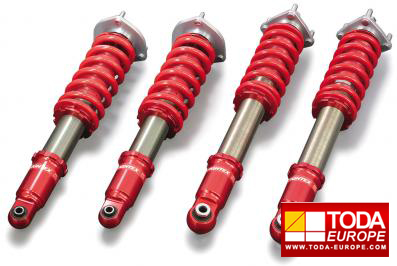

The product of above image is optional specification model that Green Chromate surface treatment is used on the outer cases and the front bottom brackets. Has at least twice as much resistance to corrosion as that of other companies plating techniques. This optional specification is available for other models of FIGHTEX dampers. →Check Overhaul and /or specification change price list.

*Click the damper images below to see larger pictures.

EP3 FIGHTEX Damper KIT Type Kit contents Damper + Spring + Pillow ball upper Mount Model EP3 (CIVIC TypeR) Part No. 51520-EP3-000 51540-EP3-000 Price (KIT) £2750 £2750 (Green Chromate spec) Option Pillow-ball bush (R ¥10,000) Supplied spring rate [kgf/mm-mm] Front 8K-160 8K-160 Rear 12K-140(ID70mm) 12K-140(ID70mm) Accessories Front helper springs Design F:Upside down design / R:Standard design Remarks Normal upper mount is unavailable. *Rear springs ID:70. Rear dampers have no adjustable bracket for ride height control. Normal upper mount is unavailable. *Rear springs ID:70.

Spring rate can be changed at the time of order (A price is the same). ID60 – Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22) ID70 – Spring rate kgf/mm (6, 8, 10, 12, 14, 16) -Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

Damper KIT contents: Damper, main spring, front helper spring, pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot (rear), car height adjustment wrench, damping force adjustment wrench, instruction manual.

Dual Adjust (DA) offers the adjustable bottom bracket for quick and easy changes on the overall length of dampers without making adjustments on the spring pre-load. It helps to find the delicate balance between traction and grip. TODA Racing utilizes the latest design and manufacturing technologies to produce FIGHTEX coilover systems. FIGHTEX coilover systems should not be confused with cheaper height adjustable systems. The FIGHTEX system is a complete racing suspension and is specifically tuned for each vehicle application. All systems are produced from aluminium (not steel) to reduce un-sprung weight, aide in faster suspension cooling, and resistance to corrosion which is common with coilover dampers manufactured from steel. FIGHTEX suspension systems are among the worlds highest quality and highest performing coilover systems. All development and manufacturing is done in house by TODA Racing.
