Description

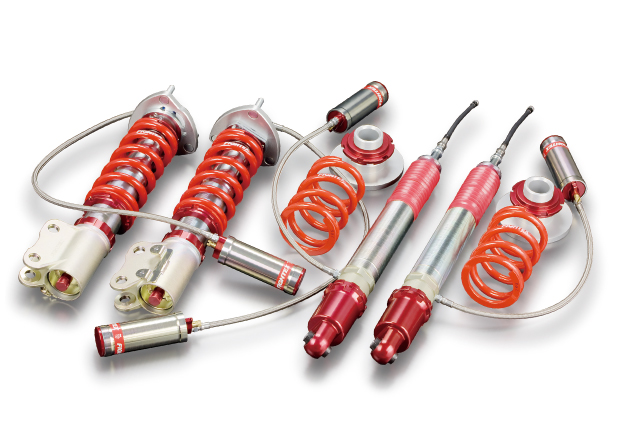

FD2 Toda Racing Fightex EX Coilovers

The ultimate performer, incorporating advantages of both the ST and DA types.

Featuring independent bump and rebound 18 step tuning along with adjustable bottom bracket for full length adjustment independent of spring preload. For the ultimate performance.

FD2 CIVIC TypeR

FD2 FIGHTEX Damper KIT
Type

Kit contents		Damper + Spring + Pillow-ball upper Mount
Model		FD2 (CIVIC TypeR)
Part No.		51520-FD2-000	51540-FD2-000
Price (KIT)			£3600
Option		Pillow-ball bush (R ¥10,000) Spring seat spacer ID70 20mm up (FD2:Rear/AK12:Rear) ¥6,500/each 51412-020-048-70
Supplied spring rate [kgf/mm-mm]	Front	10K-200	10K-200
	Rear	10K-140(ID70mm)	10K-140(ID70mm)
Adjustable height range to standard height	Front	approx. -5mm ~ -50mm
	Rear	approx. -20mm ~ -50mm
Design		F:Upside down design / R:Standard design
Remarks		Normal upper mount is unavailable. The car height adjustment unit is included for rear spring position. Require modification to the rear spring seat rubber. *Rear springs ID:70.

Spring rate can be changed at the time of order (A price is the same).
ID60 – Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
ID70 – Spring rate kgf/mm (6, 8, 10, 12, 14, 16)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

Since being established in 1971, TODA RACING has been involved in motorsport through many different projects including engine development and the in-house manufacturing of motorsport parts. Since that time TODA RACING has continued to expand, to where it now manufactures in-house both motors and inverters. Designs, builds and supplies various test stands. As well as developing and provides services for prototypes and R&D vehicle builds. All of which have may satisfied customers. TODA RACING is about removing standard conventions to help push forward, with the motto of “Transforming Automotive Dreams into Reality”.
