DC2 Toda Racing FIGHTEX Dual Adjust Coilovers

£2,628.00

SKU: SKU-17211 Categories: ,

Description

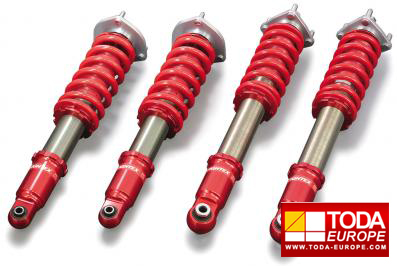

DC2 Toda Racing FIGHTEX Dual Adjust Coilovers

Adjustable bottom brackets. The dual adjustable type allows quick and easy adjustment of the total length.

The total length of the damper can be tuned via the bottom bracket. The car ride height can be adjusted without touching the spring pre-load. Helping to find the delicate balance of traction and grip, through the various independent parameters of ride height, spring pre load and rebound stroke lengths.

DC2/DB8 INTEGRA TypeR
well
TypeFS
*Click the damper images below to see larger pictures.
DC2/DB8 FIGHTEX Damper KIT
Type
TypeFS

TypeST
TypeDATypeDA-G
dc2-fsdc2-fsdc2-fsdc2-fs
Kit contentsDamper + Spring + Pillow ball upper Mount
ModelDC2/DB8 (INTEGRA TypeR)
Part No.51520-DC2-000
Price (KIT)£2190
Price (damper only)51522-DC2-000
¥170,000
Price (damper + spring)51521-DC2-000
¥188,000
OptionpiloPillow-ball bush (R ¥10,000)
Supplied spring rate
[kgf/mm-mm]
Front10K-16010K-16010K-16020K-160
Rear8K-1608K-1608K-2008K-200
AccessoriesHelper springsHelper springs
DesignF/R Standard design
Spring rate can be changed at the time of order (A price is the same).
Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)
Damper KIT contents: Damper, main spring, helper spring (on certain types only), pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.

For info on Integra DC2 Toda Racing FIGHTEX Dual Adjust Coilovers please go here

For info on our full range of goods and services please go here

Since being established in 1971, TODA RACING has been involved in motorsport through many different projects including engine development and the in-house manufacturing of motorsport parts. Since that time TODA RACING has continued to expand, to where it now manufactures in-house both motors and inverters. Designs, builds and supplies various test stands. As well as developing and provides services for prototypes and R&D vehicle builds. All of which have may satisfied customers. TODA RACING is about removing standard conventions to help push forward, with the motto of “Transforming Automotive Dreams into Reality”.
