Swift ZC32S FIGHTEX Dual Adjust Coilovers

Description

Swift ZC32S FIGHTEX Dual Adjust Coilovers

Adjustable bottom brackets. The dual adjustable type allows quick and easy adjustment of the total length.

The total length of the damper can be tuned via the bottom bracket. The car ride height can be adjusted without touching the spring pre-load. Helping to find the delicate balance of traction and grip, through the various independent parameters of ride height, spring pre load and rebound stroke lengths.

ZC32S SWIFT SPORT

ZC32S FIGHTEX Damper KIT Type Kit contents Damper + Spring Model ZC32S Part No. 51521-ZC32-000 51531-ZC32-000 Price (KIT) £2140 Price (damper only) Option Pillow-ball bush (R ¥10,000) Supplied spring rate [kgf/mm-mm] Front 8K-200 16K-200 Rear 5K-160 6K-160 Adjustable height range to standard height Front approx. ±0mm ~ -50mm approx. ±0mm ~ -50mm Rear approx. +10mm ~ -35mm approx. +10mm ~ -35mm Design F: Up side down design / R: Standard design Remarks *The car height adjustment unit is included for the rear spring. *Front bottom bracket can change camber angle. (Compared to standard ±0°, -1.5°, -3.0°) *Require modification for rear spring rubber.

Spring rate can be changed at the time of order (A price is the same). Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22) -Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

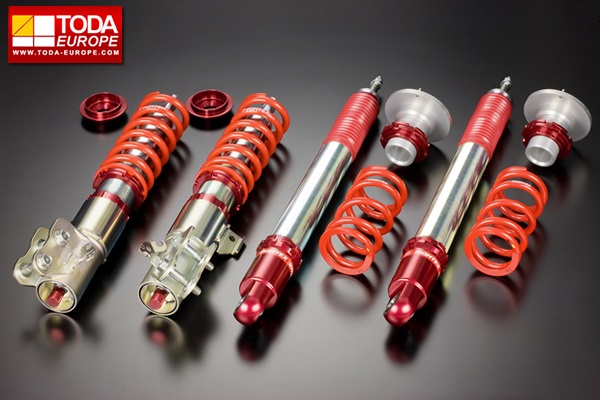

Damper KIT contents: Damper, main spring, car height adjustment lower unit (rear), spring upper seat, spring lower seat, lock seat, dust boot, car height adjustment wrench, damping force adjustment wrench, instruction manual.
