Swift ZC32S FIGHTEX Gymkhana Coilovers

Description

Swift ZC32S FIGHTEX Gymkhana Coilovers

Dual adjustment Gymkhana spec.

Designed for Gymkhana use only. 18 step damping force adjustment + full length adjustment. Designed for all the forms of Gymkhana found in Japan, the DA-G allows the car to be set up for the various conditions found at the track suck as weather and track surface. Drivers in the Japan championship use the adjustability to continually test and fine tune to find that winning advantage. The adjustability also allows you to continually get the best out of the latest tire compounds.

ZC32S SWIFT SPORT

ZC32S FIGHTEX Damper KIT Type Kit contents Damper + Spring Model ZC32S Part No. 51521-ZC32-000 51531-ZC32-000 Price (KIT) £1950 Price (damper only) 51522-ZC32-000 ¥228,000 51532-ZC32-000 ¥248,000 Option Pillow-ball bush (R ¥10,000) Supplied spring rate [kgf/mm-mm] Front 8K-200 16K-200 Rear 5K-160 6K-160 Adjustable height range to standard height Front approx. ±0mm ~ -50mm approx. ±0mm ~ -50mm Rear approx. +10mm ~ -35mm approx. +10mm ~ -35mm Design F: Up side down design / R: Standard design Remarks *The car height adjustment unit is included for the rear spring. *Front bottom bracket can change camber angle. (Compared to standard ±0°, -1.5°, -3.0°) *Require modification for rear spring rubber.

Spring rate can be changed at the time of order (A price is the same). Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22) -Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

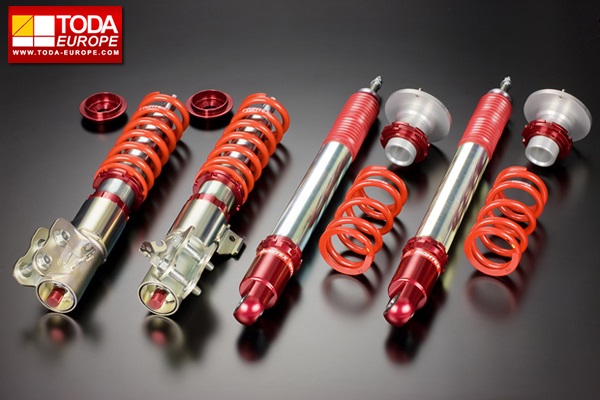

Damper KIT contents: Damper, main spring, car height adjustment lower unit (rear), spring upper seat, spring lower seat, lock seat, dust boot, car height adjustment wrench, damping force adjustment wrench, instruction manual.
