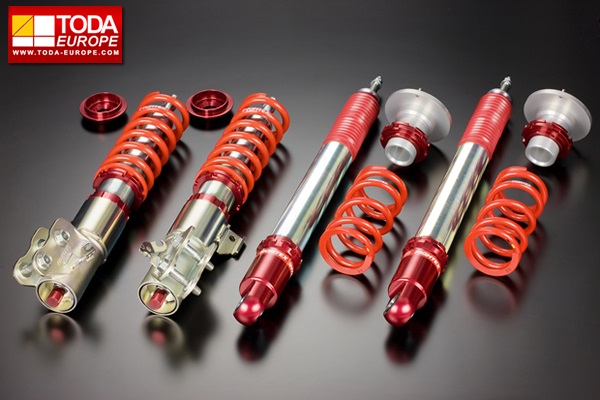

Swift ZC31S FIGHTEX Dual Adjust Coilovers

£2,034.00

SKU: SKU-20050 Categories: ,

Description

Swift ZC31S FIGHTEX Dual Adjust Coilovers

Adjustable bottom brackets. The dual adjustable type allows quick and easy adjustment of the total length.

The total length of the damper can be tuned via the bottom bracket. The car ride height can be adjusted without touching the spring pre-load. Helping to find the delicate balance of traction and grip, through the various independent parameters of ride height, spring pre load and rebound stroke lengths.

ZC31S SWIFT SPORT
well
After much testing the Swift Sports (ZC31S) DA damper kit that can be used from street to winding roads has been developed. This flexibility has been achieved from the hardest settings giving a direct, alert and agile performance to its softer settings of a more graceful and comfortable cruising nature, is covered in a wide range of settings.
ZC31S FIGHTEX Damper KIT
TypeTypeDA
Kit contentsDamper + Spring
ModelZC31S (SWIFT SPORT)
Part No.51521-ZC3-000
Price (KIT)£1695
Price (damper only)51522-ZC3-000 ¥208,000
Supplied spring rate
[kgf/mm-mm]
Front7K-200
Rear6K-160
Adjustable height range to standard heightFrontapprox. +5mm ~ -45mm
Rearapprox. ± 0mm ~ -45mm
AccessoriesF: Up side down design / R: Standard design
Design*The car height adjustment unit is included for the rear spring.
*Front bottom bracket can change camber angle.
(Compared to standard ±0°, -1.5°)
*Require modification for rear spring rubber.
Spring rate can be changed at the time of order (A price is the same).
Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)
Damper KIT contents: Damper, main spring, car height adjustment lower unit (rear), spring upper seat, spring lower seat, lock seat, dust boot, car height adjustment wrench, damping force adjustment wrench, instruction manual.

For info on Swift ZC31S FIGHTEX Dual Adjust Coilovers please go here

For info on our full range of goods and services please go here
