FK8 HKS Oil Cooler Kit – 15004-AH004

£936.00

Description

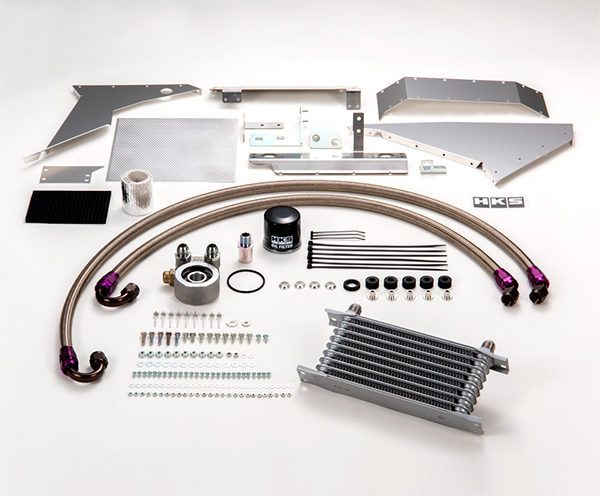

FK8 HKS Oil Cooler Kit – 15004-AH004

It’s very important to control the oil temperature to enjoy driving.

Extreme increases in oil temperature can break down the oil and decreases its ability to lubricate, cool and clean the engine and can cause damage as a result. HKS Oil Cooler Kits are designed with advanced cooling technology which enables stable oil temperatures to extract the maximum ability from the engine.

Honda Civic Type R FK8 HKS Oil Cooler 15004-AH004  Honda Civic Type R FK8 HKS Oil Cooler 15004-AH004  Honda Civic Type R FK8 HKS Oil Cooler 15004-AH004

Honda Civic Type R FK8 HKS Oil Cooler 15004-AH004

■Product Development Concept
The Honda K20C engine generates a healthy 320hp with a 2.0 litre displacement; therefore, the standard vehicle is equipped with a laminova water-cooled engine oil cooler in order to stabilize the high engine output. However, under circuit and hard-driving, the temperature of both the engine oil and the water rise sharply because adequate heat cannot be radiated obtained. This often causes the ECU fail-safe mode to become activated – leaving the car in “limp home” mode.

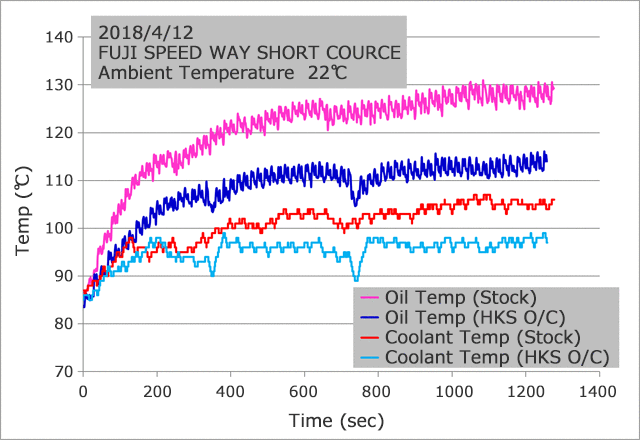

Installing the HKS air-to-air cooling type oil cooler kit provides a much higher heat-exchange efficiency to suppress the temperature rise. Not only is the engine oil-cooled better but so is the engine coolant. The HKS oil cooler kit includes a special aluminum air-duct guide.

■Features

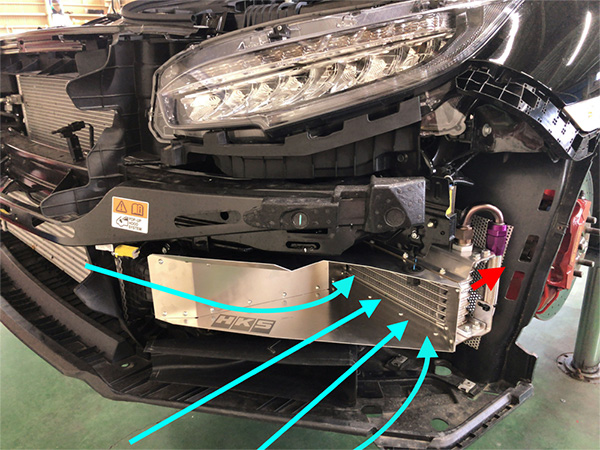

Newly developed 48mm wide 9-layer oil cooler core and special air duct to extract the maximum performance are utilized and mounted to the inside of the inner fender.
The oil pump’s pulsation noise generated by an increase of engine rotation sometimes transmits to the vehicle interior through the high pressure-resistant stainless mesh hose. HKS oil cooler kit has the insulator to substantially reduce this pulsation noise.
The attachment has a thermostat to restrain the excessive cooling of the part.
Vehicle modification required to install this kit is minimized. (Modification of back of the bumper, inner fender, and brake duct are only required.)

R TYPE

HKS Oil Cooler kit R Type is a filter relocation type for strict control of oil condition.

The core on the above photo is different from the actual core included in a kit.

Installing the attachment to the factory oil filter’s position and relocating the filter require only minimum maintenance.

HKS Oil Cooler R Type can relocate the location of an oil filter so the oil filter replacement can be easily done. As remarkable difference from the others, thermostat is activated by temperature of the oil flow out of the engine, that allows engine oil to be maintained at the ideal temperature. This thermostat has high response and relief feature which activates when differential pressure exceeds 200kPa (2.0kgf/cm2).

[ Oil Temperature Meter: Oil Pressure Gauge Installation Hole ]

Adaptor Thermo: M12×P1.25 (1hole) , PT1/8 (1hole)
