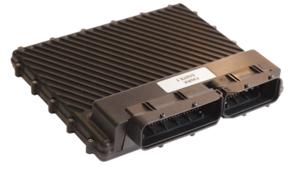

Syvecs s12C ECU
Syvecs S12C ECU is a top of the range engine management solution featuring 28 x Inputs, 50 x Outputs, 3 x DBW Drivers, 4 x Knock Inputs, 4 x Lambda Inputs, 2 x EGT Inputs All software features are enabled from factory except for Direct Injection Control which is an optional upgrade. Designed to withstand some of the toughest of condition and still provide enough I/O to run a V12 engine fully sequentially for a life time.
Should you need a plug and pin kit or any upgrades and options for the Syvecs S12C ECU please go here.
Should you need any sensors for the Syvecs S12C ECU please go here.
Specifications:
50 user configurable general purpose Pulse Width Modulated power outputs, including:
12 Ignition Coil outputs – IGBT(Coil Direct) or TTL (ignitor)
24 Fuel injector outputs
8 PWM Outputs
3 full bridges also configurable as 6 half bridges or 6 PWMs
Up to 20A output per Full Bridge (DbW & HDP-5)
28 General purpose inputs
4 Knock inputs
2 NTK wide band Lambda interfaces
2 K-type thermocouple interfaces
100 MHz full duplex Ethernet for connection to PC for programming and data download
3 Can 2.0B interfaces
RS232 serial interface
6 to 26v input voltage range with reverse polarity protection
2 regulated 5V sensor supply outputs with protection
Software configurable sensor (5v to 12v) sensor supply output
Unregulated sensor supply output which tracks the ECU supply voltage
5 Separately protected sensor and communication ground inputs
Up to 128MB flash logging memory
Fast download less than 30 seconds via Ethernet
Time/Date stamped data via real time clock
Twin split automotive connector totalling 121 pins
Anodised aluminium case
Maximum dimensions including the connectors 178 x 160 x 45 mm
Total mass is 670 grams
Operating Temperature -55 to +95 C
